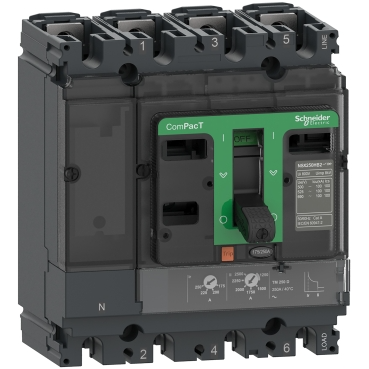

The Schneider Electric ComPacT NSX250F circuit breaker is engineered for robust electrical protection in demanding industrial environments. This 4-pole breaker, part of the ComPacT NSX series, features a 250A rating and a TMD trip unit, providing reliable circuit interruption capabilities. Its design is suitable for applications requiring comprehensive protection for both phase conductors and the neutral.

Technical details

• Series: ComPacT NSX
• Model: NSX250F
• Number of Poles: 4
• Neutral Configuration: 4D (Neutral fully protected)
• Interrupting Capacity: 36kA at 415VAC
• Trip Unit Type: TMD
• Current Rating: 250A
• Voltage Rating: 415VAC

Applications & compatibility

This circuit breaker is designed for use in power distribution systems within manufacturing facilities, data centers, and commercial buildings. It is commonly integrated into motor control centers, panelboards, and switchgear assemblies to protect electrical circuits from overloads and short circuits in applications such as conveyor systems, pump controls, and HVAC units.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C25F4TM250 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
