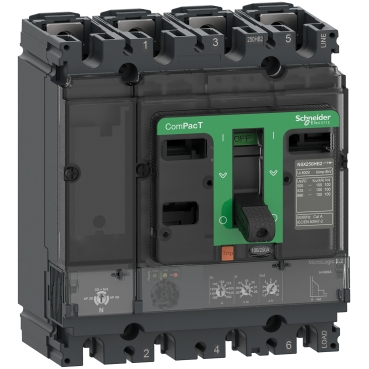

The Schneider Electric ComPacT NSX250N circuit breaker is engineered for robust electrical protection in demanding industrial environments. This 4-pole breaker, part of the ComPacT NSX series, features a MicroLogic 2.2 trip unit and a 160A current rating, providing reliable circuit interruption for systems requiring a 50kA breaking capacity at 415VAC. Its design is suitable for integration into main distribution panels and motor control centers.

Technical details

• Series: ComPacT NSX
• Model Designation: NSX250N
• Number of Poles: 4
• Rated Operational Voltage: 415VAC
• Breaking Capacity: 50kA at 415VAC
• Trip Unit: MicroLogic 2.2
• Rated Current: 160A
• Frame Size: 250A

Applications & compatibility

This circuit breaker is commonly deployed in power distribution systems for manufacturing facilities, data centers, and commercial buildings. It is designed for use in applications such as motor control, power distribution boards, and as a main incoming breaker where reliable overcurrent and short-circuit protection is critical. Ensure compatibility with your specific panelboard or switchgear specifications.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C25N42D160 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
