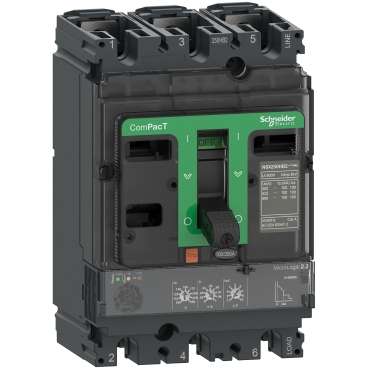

The Schneider Electric ComPacT NSX250HB2 is a 3-pole circuit breaker designed for robust electrical protection in industrial environments. This unit features a MicroLogic 2.2 trip unit and is rated for a significant interrupting capacity, making it suitable for demanding power distribution applications.

Technical details

• Series: ComPacT NSX250
• Model Designation: NSX250HB2
• Number of Poles: 3
• Interrupting Capacity: 100kA at 690VAC
• Trip Unit: MicroLogic 2.2
• Rated Current: 250A
• Voltage Rating: Up to 690VAC
• Configuration: Molded Case Circuit Breaker (MCCB)

Applications & compatibility

This circuit breaker is commonly employed in main distribution panels, motor control centers, and as a protective device for large electrical loads. Its high interrupting rating ensures safety and reliability in systems requiring protection against severe short-circuit events, such as those found in manufacturing plants, data centers, and heavy industry facilities.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C25W32D250 Schneider Electric or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
