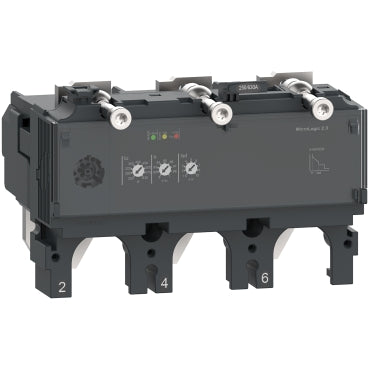

The Schneider Electric C6332D630 is a MicroLogic 2.3 electronic trip unit designed for ComPacT NSX 630 circuit breakers. This trip unit is engineered for precise current monitoring and protection in three-pole configurations, offering advanced thermal-magnetic tripping capabilities. It is commonly integrated into power distribution systems within manufacturing facilities and commercial buildings requiring robust circuit protection.

Technical details

• Series: MicroLogic 2.3
• Compatible Circuit Breaker Series: ComPacT NSX 630
• Type: Electronic Trip Unit
• Number of Poles: 3
• Current Rating: 630A
• Tripping Technology: Thermal-Magnetic
• Protection Functions: Overload, Short-circuit
• Configuration: 3d (likely refers to a specific internal configuration or feature set)

Applications & compatibility

This trip unit is essential for protecting electrical circuits in demanding industrial environments. It is suitable for use in applications such as motor control centers, main distribution panels, and branch circuit protection for heavy machinery. Its compatibility with the ComPacT NSX 630 platform ensures seamless integration into existing Schneider Electric power distribution infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C6332D630 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
