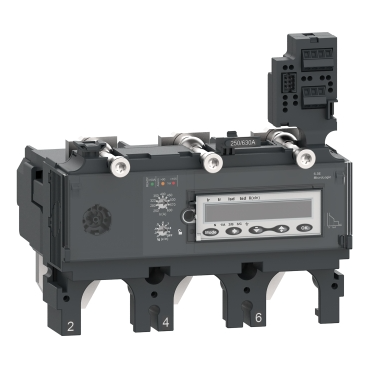

The Schneider Electric MicroLogic 6.3E trip unit is a key component for the ComPacT NSX630 circuit breaker series. This electronic trip unit provides advanced protection and monitoring capabilities for electrical distribution systems. It is designed for use in applications requiring precise current sensing and fault interruption, commonly found in industrial power distribution panels and motor control centers.

Technical details

• Series: MicroLogic 6.3E
• Compatible Breaker Series: ComPacT NSX630
• Number of Poles: 3
• Protection Functions: Basic and differential current electronic protections
• Integrated Metering: Energy meter
• Current Rating: 630A
• Type: Electronic Trip Unit

Applications & compatibility

This trip unit is suitable for protecting electrical circuits in a wide range of industrial environments, including manufacturing facilities, data centers, and commercial buildings. It is designed to integrate seamlessly with ComPacT NSX630 molded case circuit breakers, ensuring reliable operation in applications such as main distribution, feeder protection, and motor circuit protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C6336E630 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
