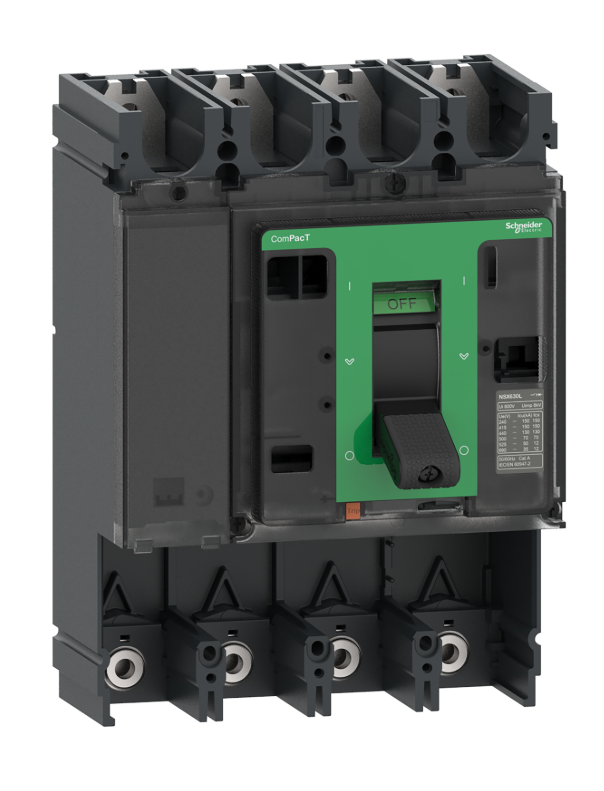

The Schneider Electric ComPacT NSX630F circuit breaker base is designed for robust power distribution and protection in demanding industrial environments. This 4-pole unit is part of the ComPacT NSX series, engineered for high fault current interruption capabilities. It serves as a foundational component for custom circuit breaker configurations, requiring a separate trip unit for full functionality.

Technical details

• Series: ComPacT NSX
• Model Designation: NSX630F
• Number of Poles: 4
• Frame Rating: 630 Amperes
• Interrupting Capacity: 36 kA at 415 VAC
• Configuration: Circuit breaker base, supplied without a trip unit
• Voltage Class: 415 VAC

Applications & compatibility

This circuit breaker base is integral to power distribution panels and motor control centers within manufacturing facilities, data centers, and infrastructure projects. It is commonly found in applications requiring reliable protection for main feeders, branch circuits, and large motor loads where high short-circuit currents are anticipated.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C63F4 or contact our technical team for cross-reference assistance with compatible ComPacT NSX trip units and accessories.
