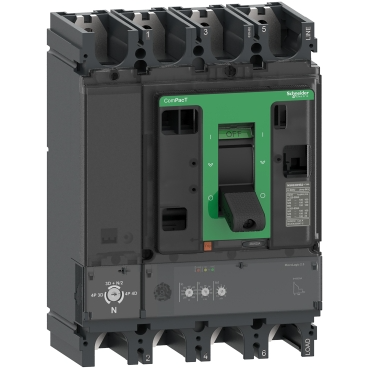

The Schneider Electric ComPacT NSX630F circuit breaker is engineered for robust electrical protection in demanding industrial environments. This 4-pole unit, identified by the C63F42D630 part number, integrates a MicroLogic 2.3 electronic trip unit for precise current monitoring and control. It is designed to safeguard electrical circuits against overloads and short circuits, ensuring operational continuity and equipment safety.

Technical details

• Series: ComPacT NSX630F
• Rated Current: 630A
• Number of Poles: 4
• Breaking Capacity: 36kA at 415VAC
• Trip Unit: MicroLogic 2.3 Electronic Trip Unit
• Configuration: 4d (4 normally open auxiliary contacts)
• Voltage Rating: Suitable for 415VAC systems
• Type: Molded Case Circuit Breaker (MCCB)

Applications & compatibility

This circuit breaker is commonly deployed in main distribution panels, motor control centers, and power distribution units within manufacturing facilities. It is suitable for protecting feeders and branch circuits in applications such as packaging machinery, material handling systems, and general industrial power distribution where reliable overcurrent protection is critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C63F42D630 or contact our technical team for cross-reference assistance with compatible ComPacT NSX components.
