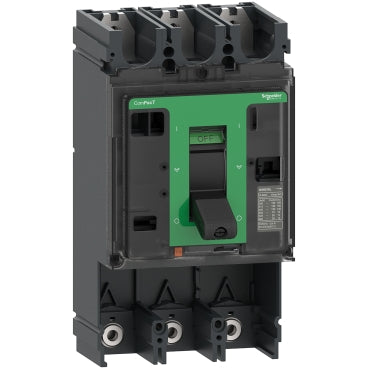

The Schneider Electric ComPacT NSX630S is a basic circuit breaker frame designed for robust power distribution and protection in industrial environments. This 3-pole frame is engineered to accommodate a 630 Ampere current rating and offers a significant interrupting capacity of 100 kA at 415 VAC, 50/60 Hz. It serves as a foundational component for building custom circuit breaker assemblies, requiring the addition of a specific trip unit to define its protective functions.

Technical details

• Series: ComPacT NSX630S
• Frame Size: 630 A
• Number of Poles: 3
• Interrupting Capacity: 100 kA at 415 VAC, 50/60 Hz
• Configuration: Basic frame, requires separate trip unit
• Voltage Rating: 415 VAC
• Frequency Rating: 50/60 Hz
• Component Type: Circuit breaker frame

Applications & compatibility

This circuit breaker frame is suitable for use in main distribution panels, motor control centers, and sub-distribution boards within manufacturing facilities, data centers, and infrastructure projects. Its high interrupting rating makes it appropriate for applications where significant fault currents are anticipated, ensuring reliable protection for downstream equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the C63S3 Schneider Electric frame or contact our technical team for cross-reference assistance with compatible ComPacT NSX trip units and accessories.
