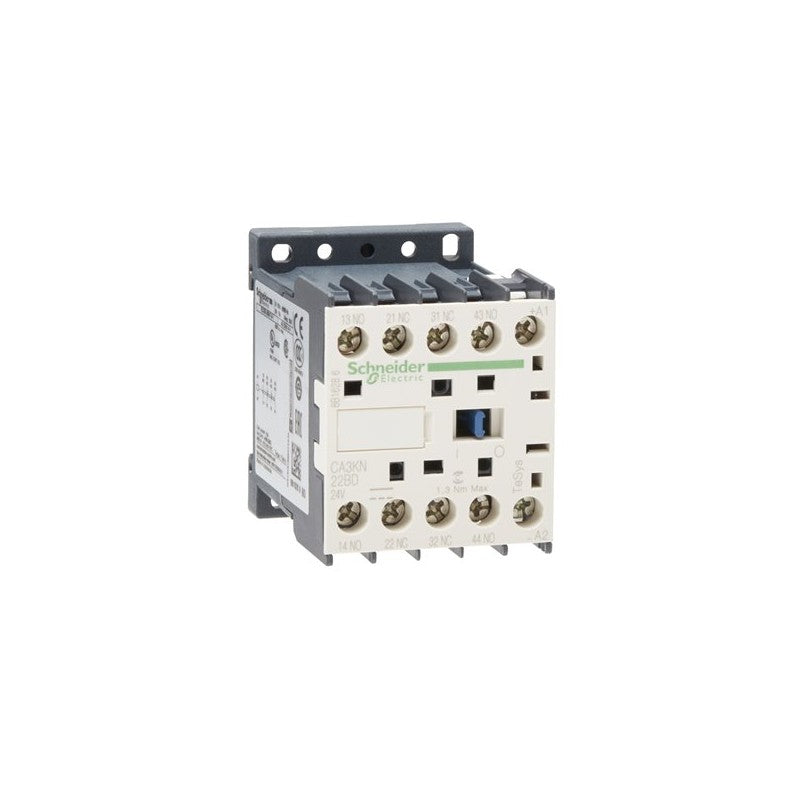

Part of the Schneider Electric TeSys K control relay family, the CA3KN22BD is designed for robust control circuit applications. This specific model features a configuration of 2 normally open (NO) and 2 normally closed (NC) contacts, suitable for managing auxiliary functions within larger automation systems. Its standard coil operates on a 24 V DC power supply, ensuring compatibility with common DC control voltages found in industrial environments.

Technical details

• Series: TeSys K
• Contact Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC)
• Coil Voltage: 24 V DC
• Maximum Voltage Rating: <= 690 V
• Control Relay Type: Auxiliary Contact Block
• Mounting Type: DIN Rail Mount (typical for this series, verify with datasheet)
• Terminal Type: Screw Terminals (typical for this series, verify with datasheet)
• Operating Temperature Range: -25°C to +55°C (typical for this series, verify with datasheet)

Applications & compatibility

The Schneider Electric CA3KN22BD control relay is commonly integrated into motor control centers, programmable logic controller (PLC) output modules, and general control panels. It serves as a reliable component for signaling, interlocking, and auxiliary control functions in machine tools, material handling systems, and process automation equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the CA3KN22BD or contact our technical team for cross-reference assistance with compatible TeSys K components.
