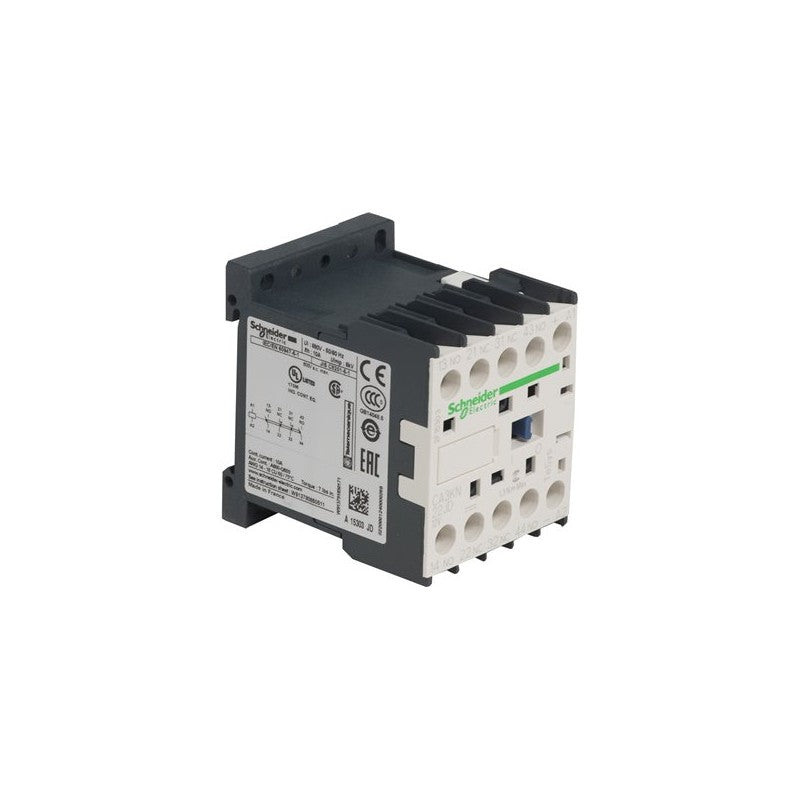

Schneider Electric's TeSys K control relay, model CA3KN22JD, is designed for robust control circuit applications. This relay features a standard 12 V DC coil and is rated for operation up to 690 V. It is a component commonly integrated into motor control centers and automation panels for machine sequencing and interlocking functions.

Technical details

• Series: TeSys K
• Coil Voltage: 12 V DC
• Maximum System Voltage: 690 V
• Contact Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC)
• Contact Rating: Suitable for control circuit applications; specific power or current ratings for auxiliary contacts should be verified against the manufacturer's datasheet.
• Mounting Type: DIN rail mountable (verify mounting details against datasheet).
• Terminal Type: Screw terminals (verify terminal type and wire gauge compatibility against datasheet).
• Enclosure Type: Open type (verify enclosure details against datasheet).

Applications & compatibility

The CA3KN22JD control relay is frequently employed in industrial control systems for applications such as motor starters, lighting control circuits, and general-purpose switching. It is compatible with various automation platforms and control panels requiring reliable auxiliary contacts for signaling or interlocking logic.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the CA3KN22JD or contact our technical team for cross-reference assistance with compatible TeSys K components.
