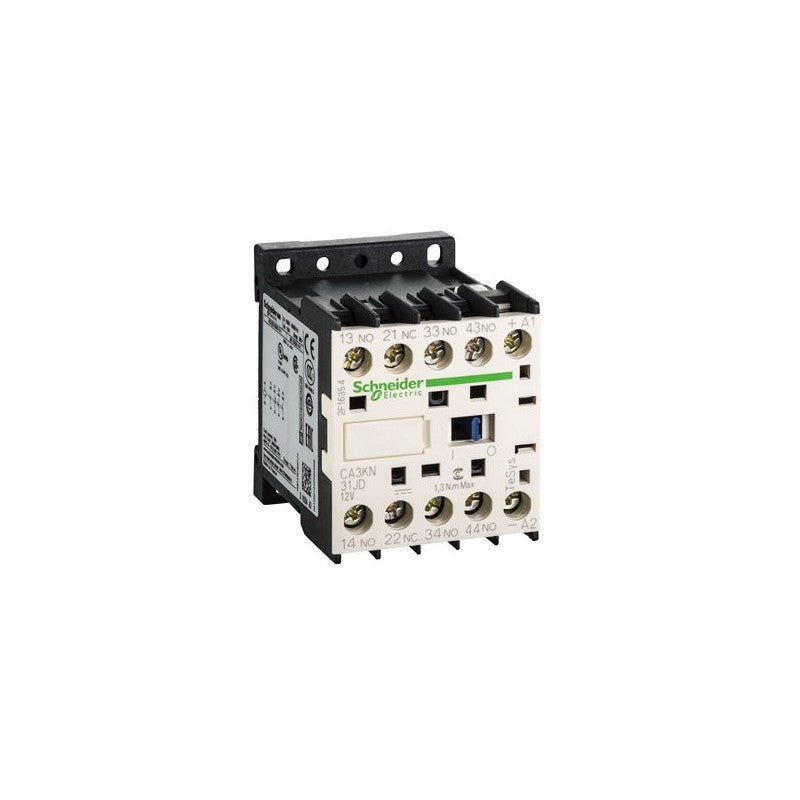

The Schneider Electric CA3KN31JD is a TeSys K control relay designed for reliable electrical control circuits. This relay features a standard 12 V DC coil and is rated for operation up to 690 V. It is commonly integrated into motor control starters and automation panels within various industrial settings.

Technical details

• Series: TeSys K
• Configuration: 3 Normally Open (NO) contacts and 1 Normally Closed (NC) contact
• Coil Voltage: 12 V DC
• Maximum Operational Voltage: 690 V
• Contact Rating: AC-15: 10 A at 600 V, DC-13: 0.5 A at 250 V (Refer to datasheet for full contact rating details)
• Mounting Type: DIN rail or panel mount
• Terminal Type: Screw terminals
• Enclosure Type: Open (IP20 protection when installed in an enclosure)

Applications & compatibility

This TeSys K control relay is suitable for use in a wide range of industrial automation applications, including motor control circuits, lighting control, and general-purpose switching. It is compatible with standard control panels and can be used in conjunction with other TeSys K components for building comprehensive control systems for machinery such as conveyors, pumps, and fans.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the CA3KN31JD or contact our technical team for cross-reference assistance with compatible TeSys K components.
