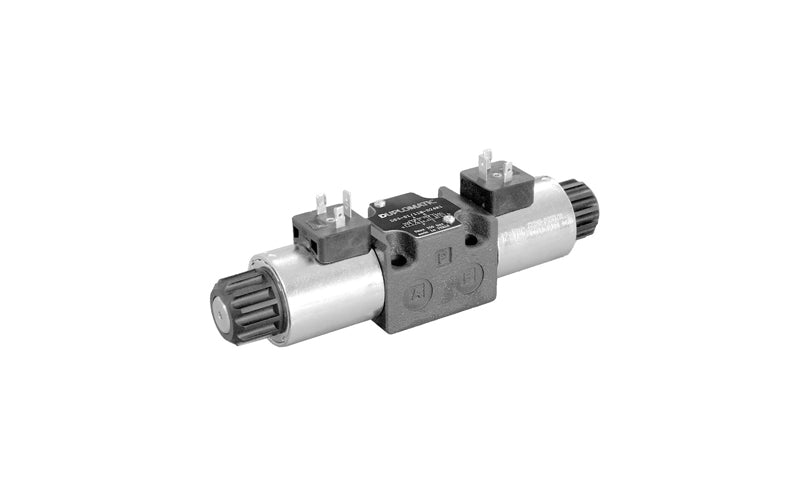

The DS3 is a direct-controlled directional solenoid valve designed to control the direction and flow of fluids. Compatible with ISO 4401-03 plate mounting, the DS3 valve offers superior performance with a maximum pressure of 350 bar and a flow rate up to 100 l/min.

Available in 3 and 4-way configurations, with spring return or mechanical retainer, the valve body is made of high strength cast iron to ensure reliability and long service life. Large internal ducts minimize pressure losses and optimize efficiency. Interchangeable coils and oil-bath sealed tubes ensure stable performance over time.

The versions available include both direct and alternating current power supply, with the possibility of supplying DC valves also in AC via connectors with integrated bridge rectifier. As an alternative to the standard manual emergency control, lever, push-button or bellows controls are provided, or equipped with mechanical stop for greater safety.

The DS3 valve is ideal for industrial applications that require a durable and high performance valve. Versions with high corrosion protection (IP) are available to ensure greater resistance in harsh environments, and models with UL certified coils for Canada and US.
