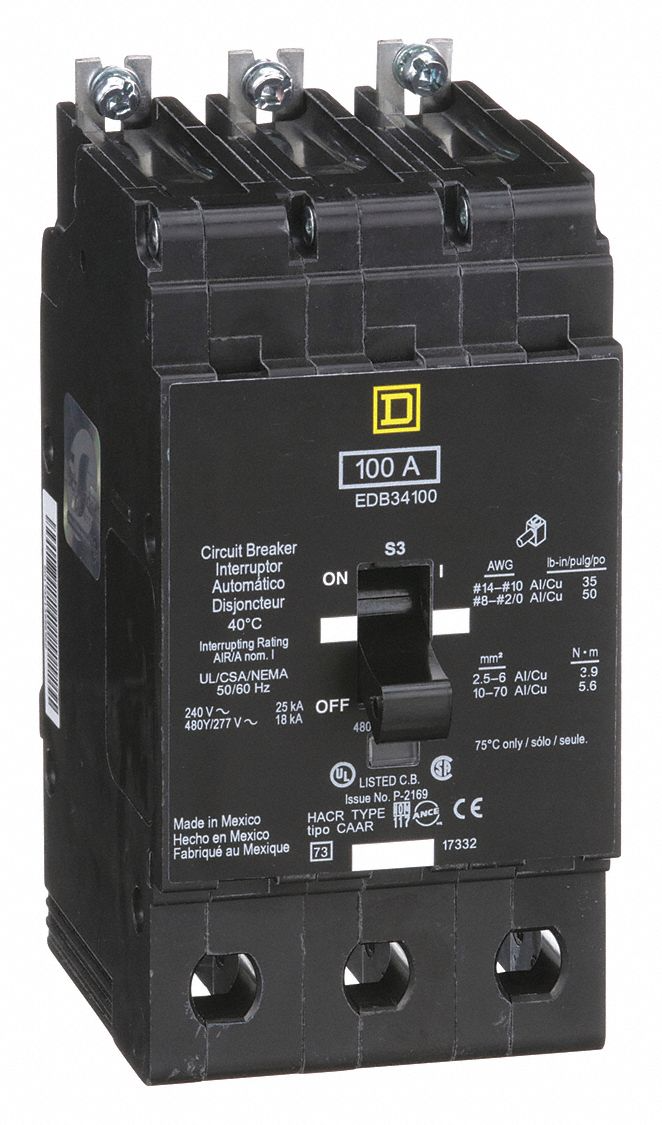

The Schneider Electric EDB34100 is an E-Frame mini circuit breaker designed for robust electrical protection in demanding industrial environments. This 3-pole breaker offers a 100A current rating and is suitable for 480Y/277VAC systems, providing essential safety for machinery and distribution panels. Its bolt-on mounting ensures secure installation within switchgear and control cabinets.

Technical details

• Series: E-Frame
• Type: Mini Circuit Breaker
• Poles: 3
• Amperage Rating: 100A
• Voltage Rating: 480Y/277VAC
• Maximum Interrupting Capacity (kA): 25kA
• Mounting Type: Bolt-on
• Compliance: TAA (Trade Agreements Act) compliant

Applications & compatibility

This EDB34100 circuit breaker is commonly specified for use in main distribution panels, motor control centers (MCCs), and branch circuit protection within manufacturing facilities. It is compatible with various industrial switchgear systems requiring reliable overcurrent and short-circuit protection for 480V circuits.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the EDB34100 or contact our technical team for cross-reference assistance with compatible Schneider Electric E-Frame components.
