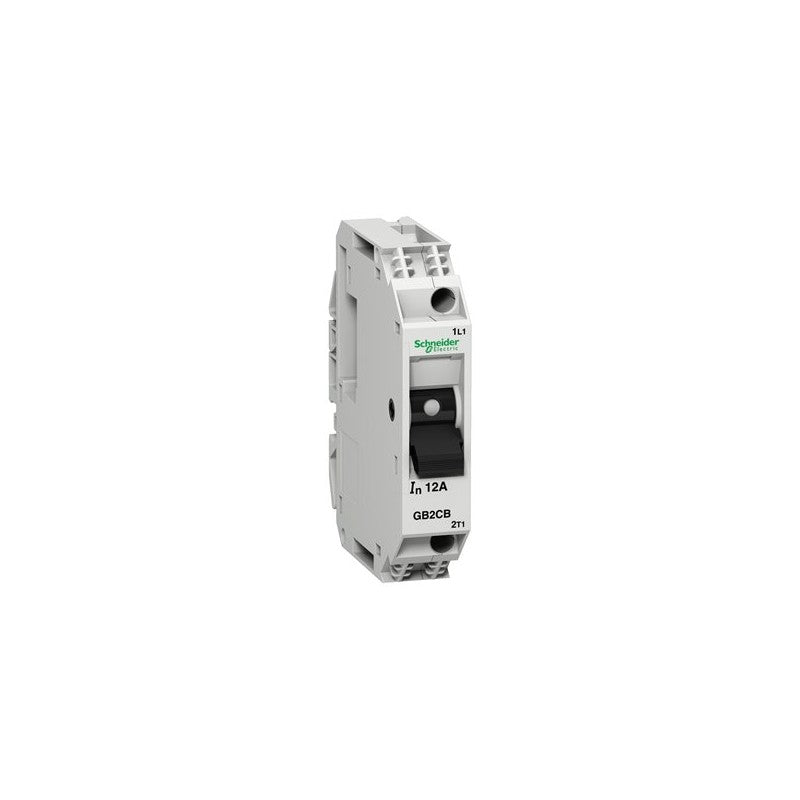

The Schneider Electric TeSys GB2CB09 is a thermal magnetic circuit breaker designed for reliable circuit protection in industrial automation systems. This single-pole breaker is part of the TeSys GB2 series, known for its robust construction and dependable performance in demanding environments. It offers a rated current of 4 Amperes and a breaking capacity of 3 kA at 240 Volts, making it suitable for protecting smaller motor loads and control circuits.

Technical details

• Series: TeSys GB2
• Poles: 1P (Single Pole)
• Rated Current: 4 A
• Breaking Capacity (Icu): 3 kA @ 240 V AC
• Trip Type: Thermal Magnetic
• Voltage Rating: Designed for circuits up to 240 V AC
• Mounting Type: DIN rail mountable (verify specific dimensions against manufacturer datasheet)
• Terminal Type: Screw terminals (verify specific type against manufacturer datasheet)

Applications & compatibility

This circuit breaker is commonly employed in control panels for protecting individual circuits within machinery such as conveyor systems, packaging equipment, and small motor drives. Its compact form factor and reliable tripping characteristics ensure consistent protection against overloads and short circuits in a variety of manufacturing and processing applications.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the GB2CB09 or contact our technical team for cross-reference assistance with compatible TeSys GB2 components.
