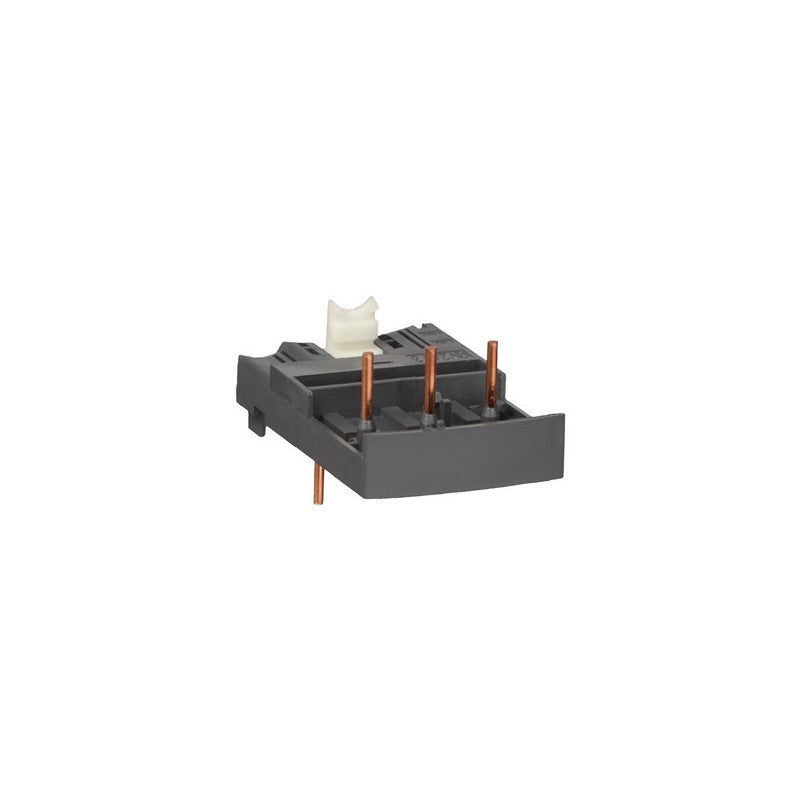

The Schneider Electric TeSys GV2AF3 is a combination block designed for motor control applications, specifically integrating with LC1D series contactors ranging from LC1D09 to LC1D38. This unit provides thermal-magnetic overload protection and short-circuit protection for electric motors, ensuring operational safety and equipment longevity within industrial automation systems.

Technical details

• Series: TeSys GV2
• Product Type: Combination Block
• Compatible Contactors: LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38
• Protection Type: Thermal-magnetic overload and short-circuit
• Mounting: Designed for direct mounting onto compatible TeSys D contactors.
• Control Voltage: Not specified by part number; verify with manufacturer datasheet.
• Amperage Rating: Not explicitly defined by the 'AF3' suffix alone; refer to manufacturer documentation for specific overload and short-circuit trip settings.
• Phase: Typically designed for 3-phase motor applications, but verify with datasheet.

Applications & compatibility

This TeSys GV2 combination block is integral to motor starter assemblies in various industrial environments. It is commonly found in control panels for conveyor systems, pumps, fans, and machine tools where reliable motor protection is paramount. Its compatibility with the widely used TeSys D contactor line ensures seamless integration into existing Schneider Electric control architectures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the GV2AF3 or contact our technical team for cross-reference assistance with compatible TeSys components.
