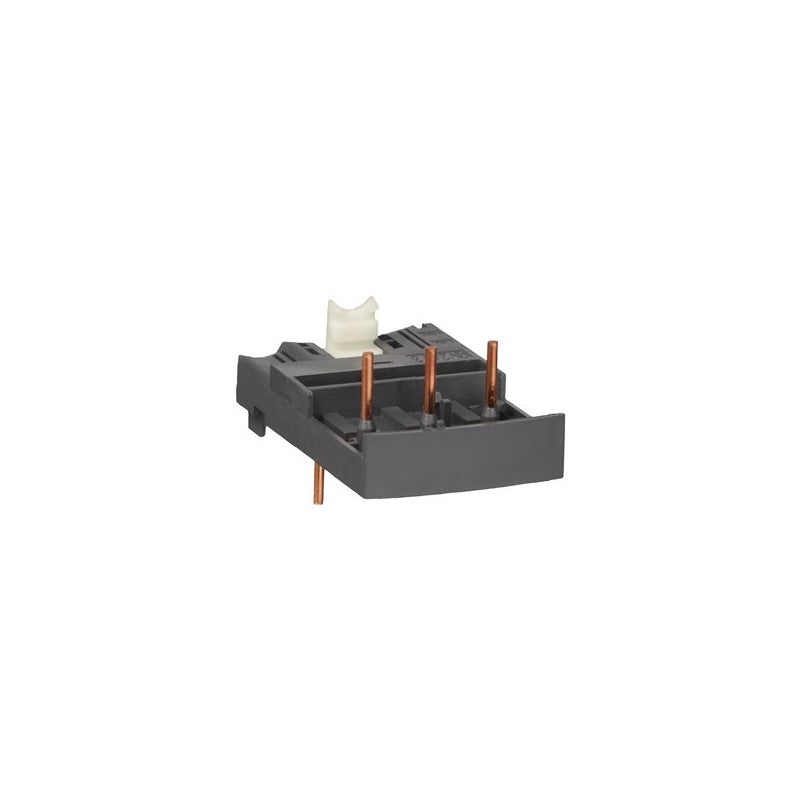

The Schneider Electric TeSys GV2AF4 is a combination block designed for motor protection applications. This unit integrates thermal-magnetic trip elements with a manual reset mechanism, commonly utilized in conjunction with TeSys D series contactors like the LC1D09 through LC1D38. Its purpose is to provide reliable overload and short-circuit protection for electric motors in industrial settings.

Technical details

• Series: TeSys GV2
• Product Type: Motor Protection Combination Block
• Integrated Components: Includes LAD311 and is designed for use with LC1D09...D38 contactors.
• Protection Type: Thermal-magnetic trip for overload and short-circuit protection.
• Reset Mechanism: Manual reset.
• Mounting: Designed for DIN rail mounting.
• Control Voltage: Specific control voltage requirements should be verified against the manufacturer's datasheet for the associated contactor.
• Environmental Rating: Standard industrial enclosure rating, specific IP rating should be confirmed via datasheet.

Applications & compatibility

This combination block is essential for safeguarding motors in a variety of industrial automation systems. It is frequently deployed in applications such as conveyor systems, pump controls, fan drives, and general machinery where precise motor protection is critical to prevent downtime and equipment damage.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the GV2AF4 or contact our technical team for cross-reference assistance with compatible TeSys components.
