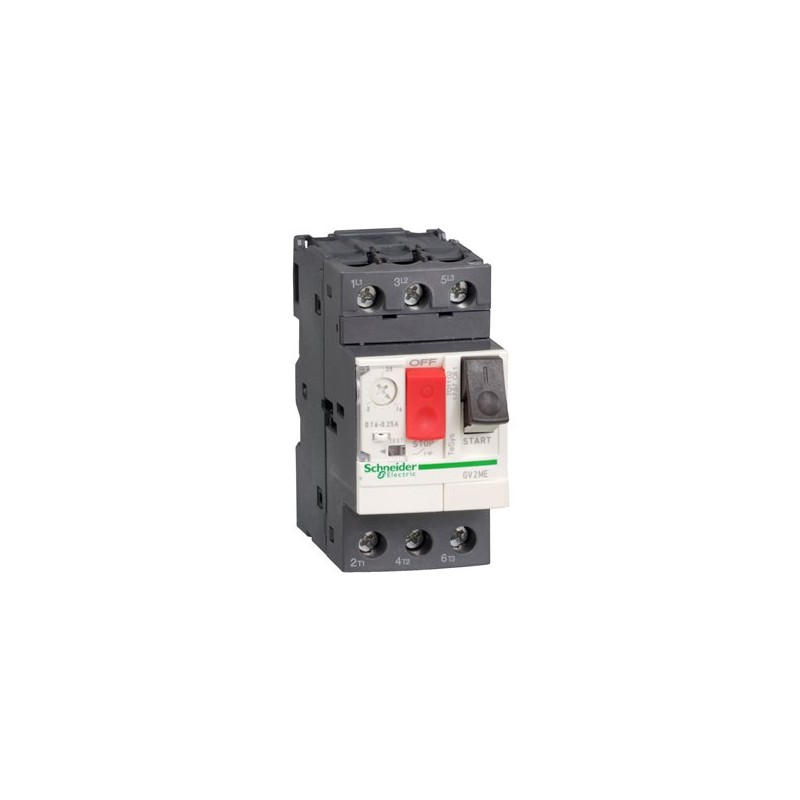

The Schneider Electric TeSys GV2ME22C is a 3-pole motor circuit breaker designed for robust motor protection in industrial automation systems. This thermal-magnetic breaker is part of the TeSys GV2 series, a line known for its compact design and reliable performance in demanding environments. It offers adjustable thermal overload protection and instantaneous magnetic short-circuit protection, ensuring the safety and longevity of connected motor loads.

Technical details

• Series: TeSys GV2
• Poles: 3
• Current Rating: 20-25 A (adjustable thermal setting)
• Protection Type: Thermal-magnetic
• Terminal Type: Screw clamp terminals
• Mounting Type: Typically panel mount (verify datasheet for specific mounting options)
• Breaking Capacity: Refer to manufacturer datasheet for specific Icu/Ics ratings
• Voltage Rating: Refer to manufacturer datasheet for specific AC voltage ratings (e.g., 230V, 400V, 690V)

Applications & compatibility

This motor circuit breaker is commonly employed in applications requiring reliable motor control and protection, such as on packaging machinery, conveyor systems, pump drives, and HVAC equipment. Its adjustable trip settings allow for precise coordination with motor characteristics, preventing nuisance tripping while safeguarding against damaging overloads and short circuits.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the GV2ME22C or contact our technical team for cross-reference assistance with compatible TeSys GV2 components.
