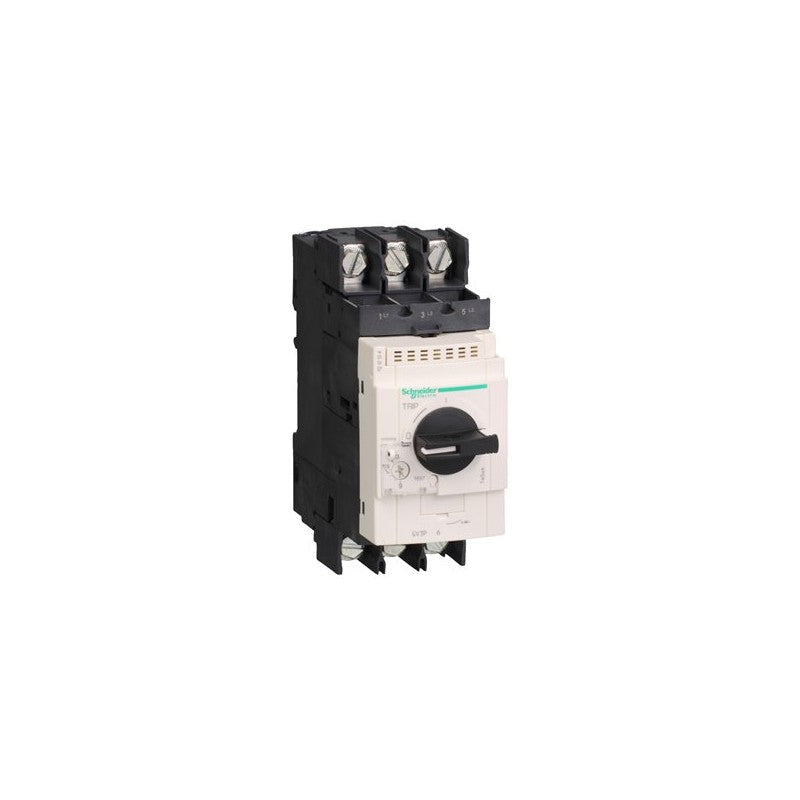

The Schneider Electric TeSys GV3P506 is a 3-pole motor circuit breaker designed for robust motor protection in industrial environments. This thermal magnetic breaker is part of the TeSys GV3 series, a line known for its compact design and high breaking capacity, suitable for direct mounting on standard 35mm DIN rails or panel mounting with appropriate accessories. It provides reliable overload and short-circuit protection for three-phase motors.

Technical details

• Series: TeSys GV3
• Poles: 3
• Trip Unit Type: Thermal Magnetic
• Adjustable Thermal Current Range: 37 A to 50 A
• Terminal Type: Lug terminals
• Breaking Capacity: Designed to meet IEC 60947-2 standards for motor protection, providing a high breaking capacity suitable for fault currents. Specific Icu rating should be verified against manufacturer datasheet.
• Mounting: Direct 35mm DIN rail mounting or panel mounting (with accessory).
• Control Voltage: Not applicable for this type of breaker; it is a direct motor protection device.

Applications & compatibility

This motor circuit breaker is commonly employed in applications requiring reliable motor control and protection, such as on packaging machinery, conveyor systems, pump drives, and HVAC equipment. Its adjustable current setting allows for precise matching to motor requirements, ensuring optimal protection across a range of motor sizes within its specified current limits.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the GV3P506 or contact our technical team for cross-reference assistance with compatible TeSys components.
