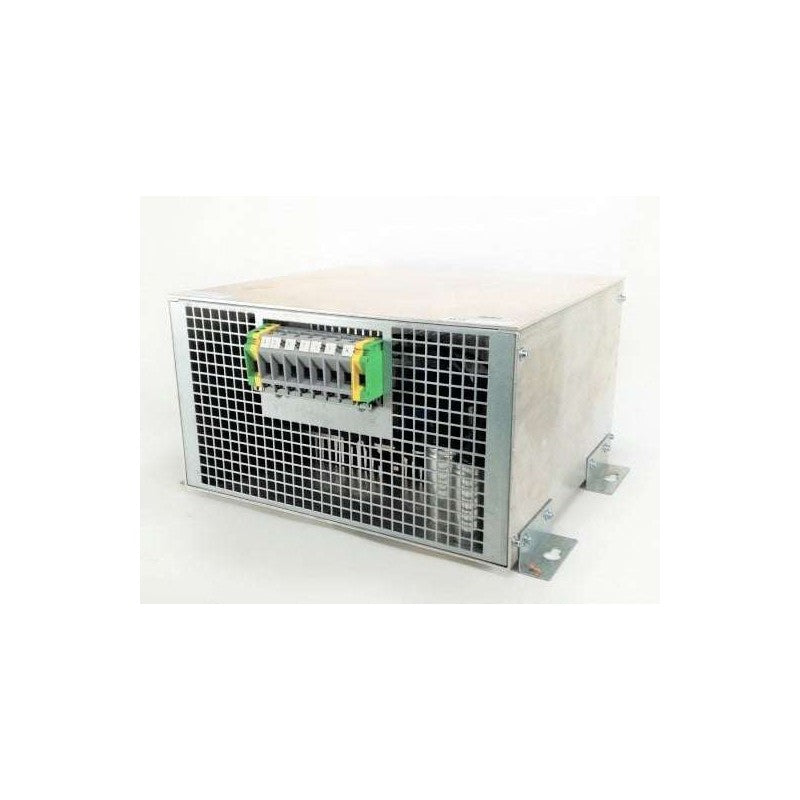

The SEW Eurodrive HF450-503 is an inverter output filter designed to mitigate electromagnetic interference (EMI) and radio frequency interference (RFI) generated by variable frequency drives (VFDs). This filter is crucial for protecting sensitive control systems and ensuring compliance with electromagnetic compatibility (EMC) regulations in industrial environments. Its application is typically found in motor control systems where VFDs are employed to regulate the speed of AC motors.

Technical details

• Product Type: Inverter Output Filter
• Manufacturer Series: HF450 Series
• Part Number Encoding: The "HF450" designation indicates a specific series within SEW Eurodrive's filter offerings, typically associated with a particular voltage and current rating range. The "-503" suffix further specifies the exact model configuration.
• Functionality: Attenuates high-frequency harmonics and switching noise from the VFD output, improving motor performance and reducing electrical noise.
• Construction: Features robust components designed for industrial duty cycles and environmental conditions.
• Connection Type: Designed for direct integration between the inverter output terminals and the motor power cable.
• Voltage Rating: Buyers should verify the precise voltage rating against the manufacturer's datasheet, as the part number does not explicitly encode this specification in a universally decipherable format.
• Current Rating: Buyers should verify the precise current rating against the manufacturer's datasheet, as the part number does not explicitly encode this specification in a universally decipherable format.

Applications & compatibility

This SEW Eurodrive output filter is commonly deployed in applications requiring precise motor speed control and electromagnetic compatibility. It is particularly beneficial in environments with sensitive electronic equipment, such as those found in packaging machinery, material handling systems, and automated assembly lines. The HF450-503 ensures reliable operation of VFD-driven equipment by minimizing electrical noise pollution.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the HF450-503 or contact our technical team for cross-reference assistance with compatible SEW Eurodrive inverter components.
