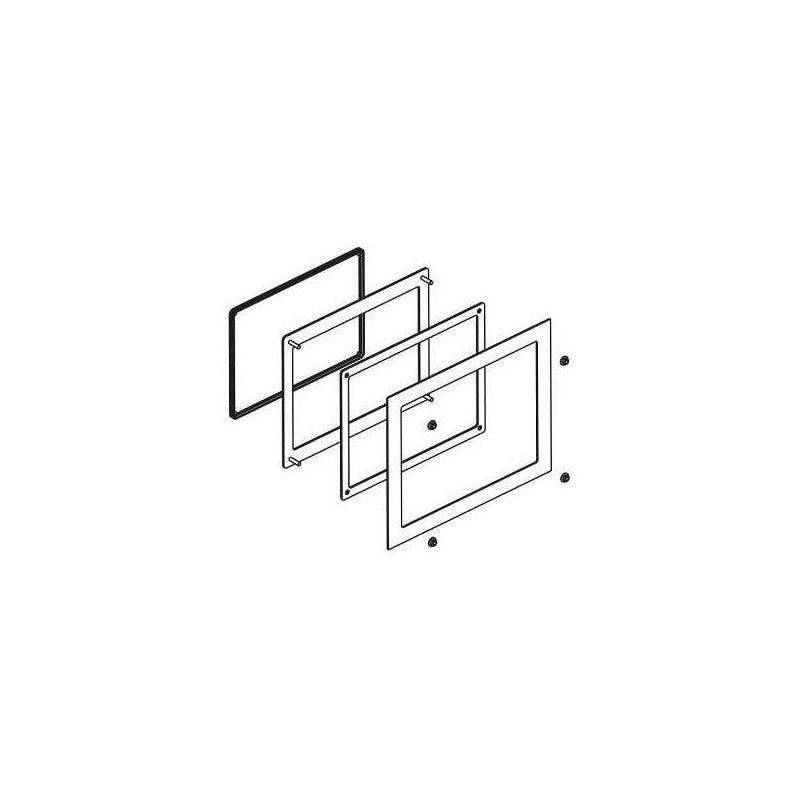

This Schneider Electric HMIZGCO1 is an adapter designed to facilitate the integration of XBTGT4 Human-Machine Interface (HMI) panels with HMIDT3 modules. It serves as a crucial component for expanding or upgrading existing HMI systems within industrial control environments.

Technical details

• Product Type: HMI Panel Cut-out Adapter
• Manufacturer Series: XBTGT / HMIDT3 Compatibility
• Functionality: Enables mounting or adaptation of HMIDT3 modules into XBTGT4 cut-out dimensions.
• Connection Interface: Specific interface details for connecting HMIDT3 to XBTGT4 cut-outs should be verified against the manufacturer's datasheet.
• Form Factor: Designed to fit specific panel cut-out dimensions for XBTGT4 series HMIs.
• Material: Typically constructed from durable industrial-grade plastics or metals for longevity in harsh environments.
• Environmental Rating: Specific IP rating and operating temperature range should be confirmed via the official Schneider Electric documentation.
• Protocol Compatibility: While the adapter itself does not dictate communication protocols, it facilitates the connection of HMIs that support various industrial communication standards such as Modbus, Ethernet/IP, Profibus, etc.

Applications & compatibility

The HMIZGCO1 adapter is commonly employed in manufacturing facilities, process control plants, and machine building environments. It is particularly useful when upgrading older XBTGT4 HMI installations to accommodate newer HMIDT3 display modules, or when integrating HMIDT3 units into custom control panels designed with XBTGT4 cut-outs. This ensures backward compatibility and allows for phased modernization of HMI infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the HMIZGCO1 or contact our technical team for cross-reference assistance with compatible Schneider Electric HMI components.
