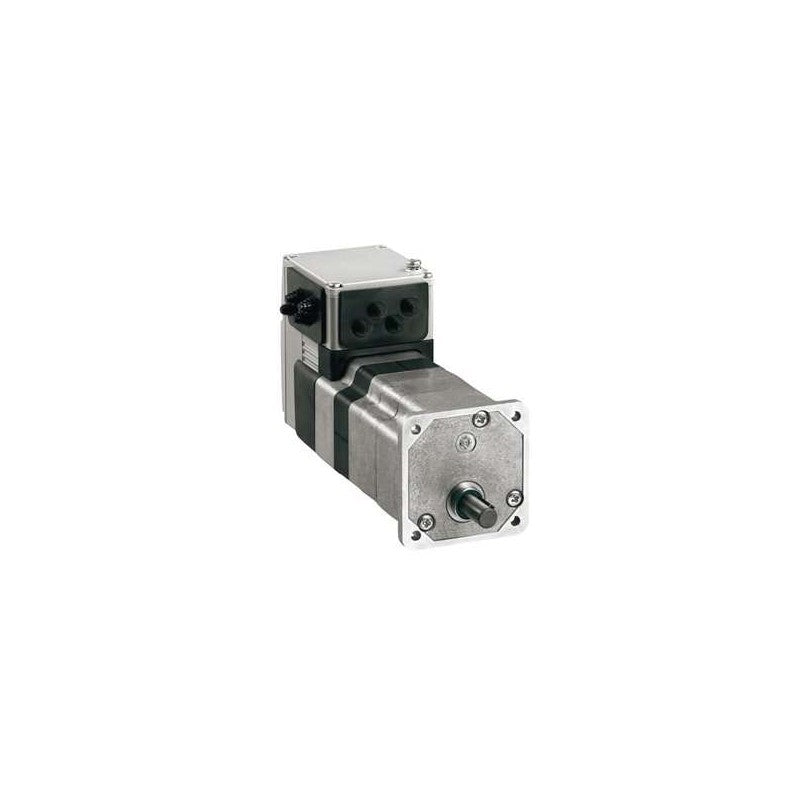

The Schneider Electric ILE1R661PC1A8 is a brushless DC motor designed for precise motion control applications. This motor, part of the Lexium integrated servo drive family, operates within a specific voltage range and features an integrated RS485 communication interface for seamless integration into automated systems. Its compact form factor and integrated design make it suitable for space-constrained environments common in advanced manufacturing.

Technical details

• Motor Type: Brushless DC (BLDC)
• Voltage Range: 24 VDC to 36 VDC
• Communication Protocol: RS485
• Gear Ratio: 115:1
• Motor Length: 174 mm
• Integrated Drive: Yes, part of the Lexium ILE series
• Feedback Type: Integrated encoder (verify datasheet for specific resolution)
• Torque Characteristics: Designed for continuous and peak torque requirements in servo applications (verify datasheet for specific values)

Applications & compatibility

This motor is commonly employed in applications requiring high precision and dynamic response, such as robotic end-effectors, automated assembly machines, and precision positioning systems. Its RS485 interface allows for direct communication with compatible PLCs and motion controllers, facilitating integration into existing automation architectures found in industries like electronics manufacturing, medical device production, and specialized machinery.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILE1R661PC1A8 or contact our technical team for cross-reference assistance with compatible Lexium ILE components.
