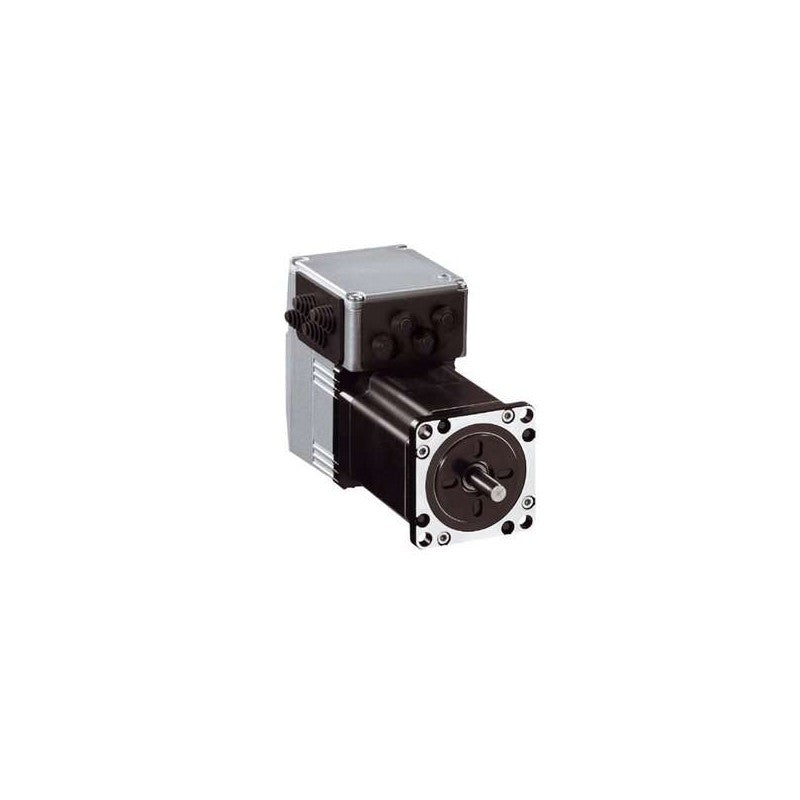

The Schneider Electric ILS1F571PB1A0 is an integrated stepper motor drive designed for precise motion control applications. This unit combines a stepper motor with its associated drive electronics, simplifying installation and reducing wiring complexity in automated systems. It operates within a specified voltage range and utilizes the CANopen DS301 communication protocol for integration into distributed control architectures.

Technical details

• Series: ILS Integrated Drive System
• Motor Type: Stepper Motor
• Drive Type: Integrated Drive
• Input Voltage Range: 24 VDC to 36 VDC
• Maximum Phase Current: 3.5 A
• Communication Protocol: CANopen DS301
• Control Interface: Digital inputs/outputs and CANopen network
• Mounting: Typically panel mount or integrated into machine chassis

Applications & compatibility

This integrated drive is well-suited for applications requiring accurate positioning and speed control, such as automated assembly machines, packaging equipment, and material handling systems. Its CANopen DS301 compatibility allows for seamless integration with a wide range of PLCs and industrial controllers that support this standard, enabling networked motion control solutions.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILS1F571PB1A0 or contact our technical team for cross-reference assistance with compatible Schneider Electric motion control components.
