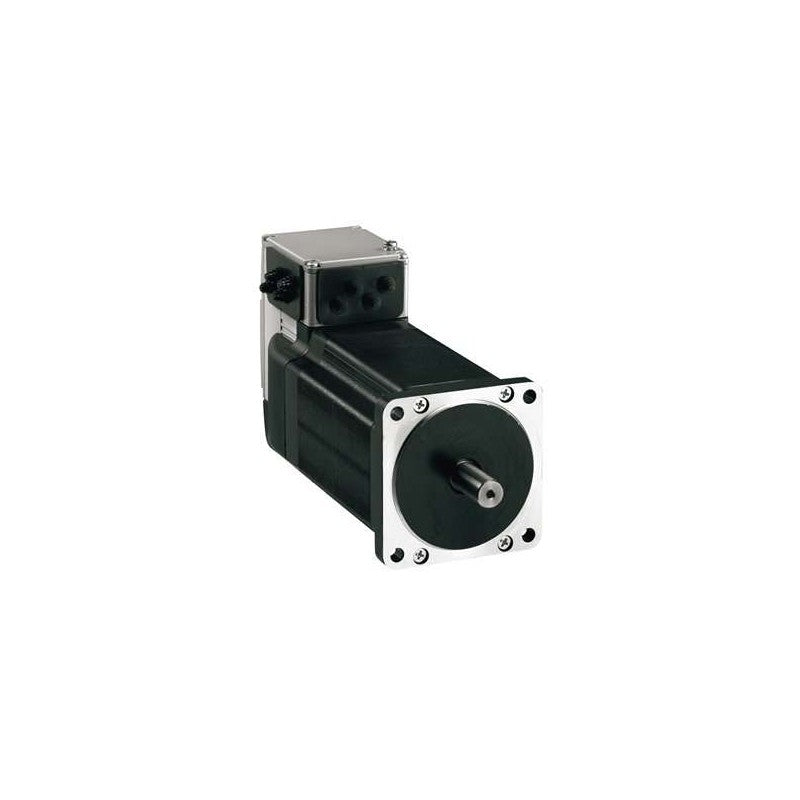

The Schneider Electric ILS1R853PC1F0 is an integrated drive system designed to control stepper motors. This unit operates within a voltage range of 24 to 36 VDC and features RS485 communication capabilities. It is engineered to deliver up to 5 A of current, making it suitable for a variety of motion control applications where precise stepper motor operation is required.

Technical details

• Series: ILS Integrated Drive
• Motor Type: Stepper Motor
• Input Voltage Range: 24 VDC to 36 VDC
• Communication Protocol: RS485
• Maximum Output Current: 5 A
• Integrated Drive Functionality: Combines motor control and drive electronics in a single unit.
• Power Supply Requirements: Requires a DC power source within the specified voltage range.

Applications & compatibility

This integrated drive is commonly employed in automated machinery and systems requiring precise positioning and speed control of stepper motors. Applications include automated assembly lines, pick-and-place machines, laboratory automation equipment, and small-scale CNC machinery. Its RS485 interface allows for integration into larger control networks and systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILS1R853PC1F0 or contact our technical team for cross-reference assistance with compatible ILS series components.
