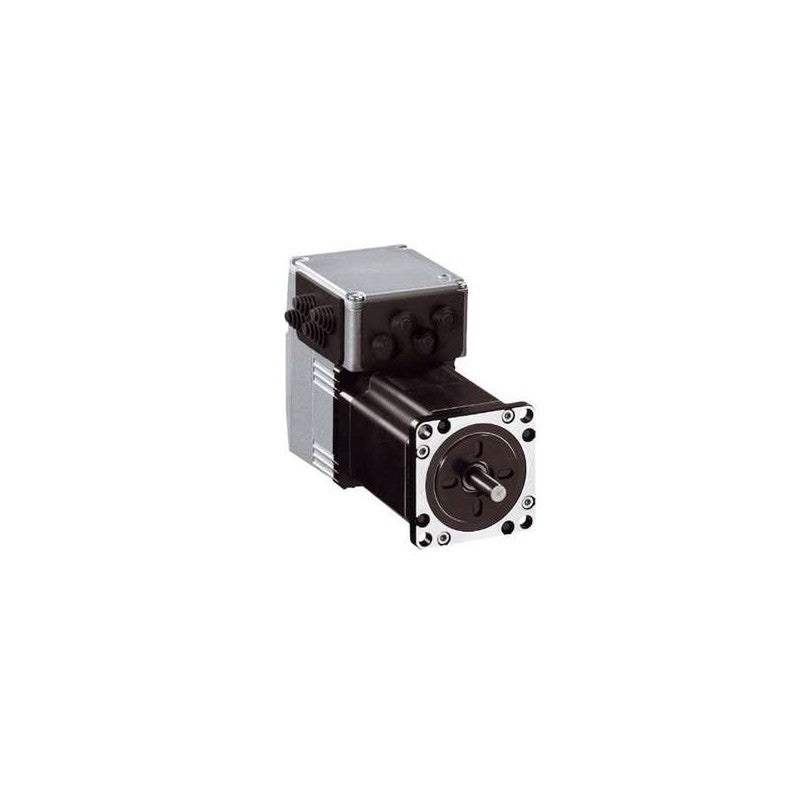

The Schneider Electric ILS1U573PB1A0 is an integrated stepper motor drive designed for precise motion control applications. This unit combines a stepper motor with its associated drive electronics, simplifying installation and reducing wiring complexity. It operates within a specified voltage range and supports pulse/direction control, making it suitable for integration into various automation systems.

Technical details

• Series: ILS Integrated Drive
• Input Voltage Range: 24 VDC to 36 VDC
• Drive Control Interface: Pulse/Direction
• Control Voltage: 24 VDC
• Maximum Output Current: 3.5 A
• Motor Type: Stepper Motor
• Integrated Component: Drive and Stepper Motor
• Communication Protocol: Pulse/Direction signal input

Applications & compatibility

This integrated drive is commonly employed in applications requiring precise positioning and controlled movement, such as automated assembly machines, pick-and-place robots, labeling equipment, and small-scale CNC machines. Its pulse/direction interface ensures compatibility with a wide range of programmable logic controllers (PLCs) and motion controllers found in packaging, material handling, and general manufacturing environments.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILS1U573PB1A0 or contact our technical team for cross-reference assistance with compatible ILS series components.
