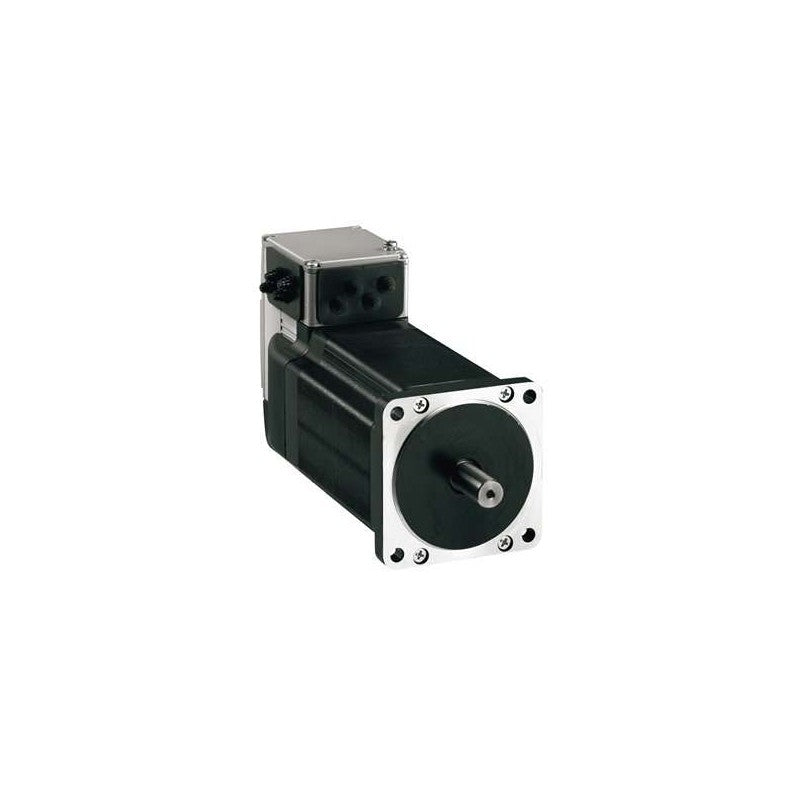

The Schneider Electric ILS1U851PB1A0 is an integrated stepper motor drive designed for precise motion control applications. This unit combines a stepper motor with its associated drive electronics, simplifying installation and reducing wiring complexity. It operates within a specified voltage range and accepts pulse/direction control signals, making it suitable for integration into various automation systems.

Technical details

• Series: ILS Integrated Drive
• Input Voltage Range: 24 VDC to 36 VDC
• Control Input: Pulse/Direction
• Control Signal Voltage: 24 VDC
• Maximum Output Current: 5 A
• Motor Type: Stepper Motor
• Form Factor: Integrated Drive and Motor Unit
• Communication Protocol: Pulse/Direction (as specified)

Applications & compatibility

This integrated drive is commonly employed in applications requiring precise positioning and controlled motion, such as automated assembly lines, pick-and-place machines, labeling equipment, and small CNC machines. Its integrated design facilitates straightforward implementation in systems where space and wiring are critical considerations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILS1U851PB1A0 or contact our technical team for cross-reference assistance with compatible Schneider Electric motion control components.
