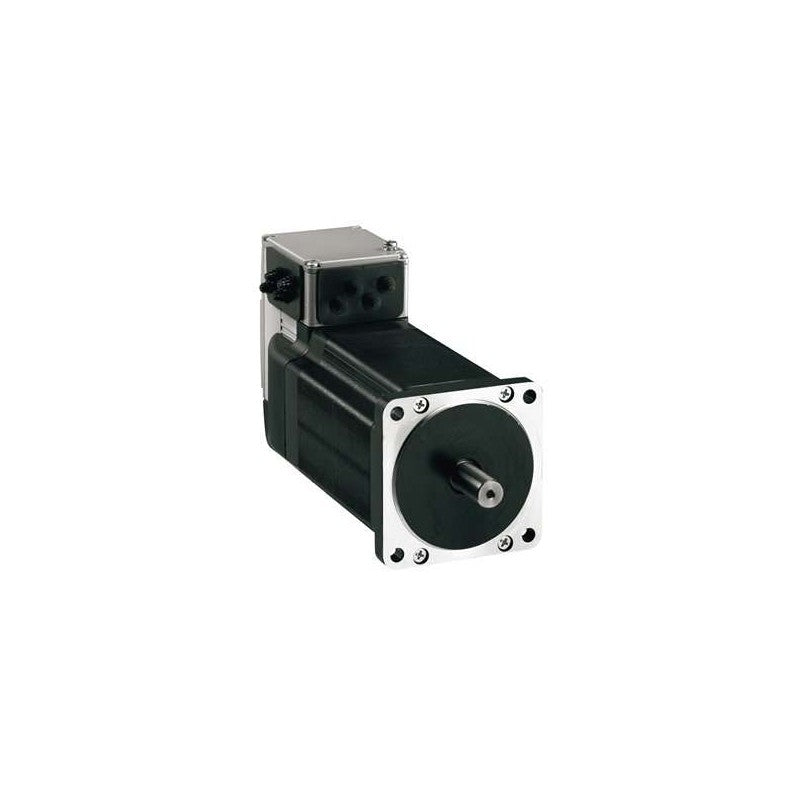

The Schneider Electric ILS1U852PB1A0 is an integrated drive designed for stepper motor control. This unit operates within a 24 to 36 VDC input voltage range and accepts pulse/direction control signals at 24 VDC. It is capable of delivering up to 5 A of current to the connected stepper motor, making it suitable for applications requiring precise motion control.

Technical details

• Series: ILS Integrated Drive
• Motor Type: Stepper Motor
• Drive Input Voltage: 24 VDC to 36 VDC
• Control Input Voltage: 24 VDC (Pulse/Direction)
• Maximum Output Current: 5 A
• Control Interface: Pulse/Direction
• Integrated Components: Drive and Stepper Motor

Applications & compatibility

This integrated drive is commonly employed in automated machinery where precise positioning and controlled movement are critical. Applications include automated assembly lines, pick-and-place robots, labeling machines, and small-scale CNC equipment. Its integrated design simplifies wiring and setup for compact automation solutions.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILS1U852PB1A0 or contact our technical team for cross-reference assistance with compatible ILS series components.
