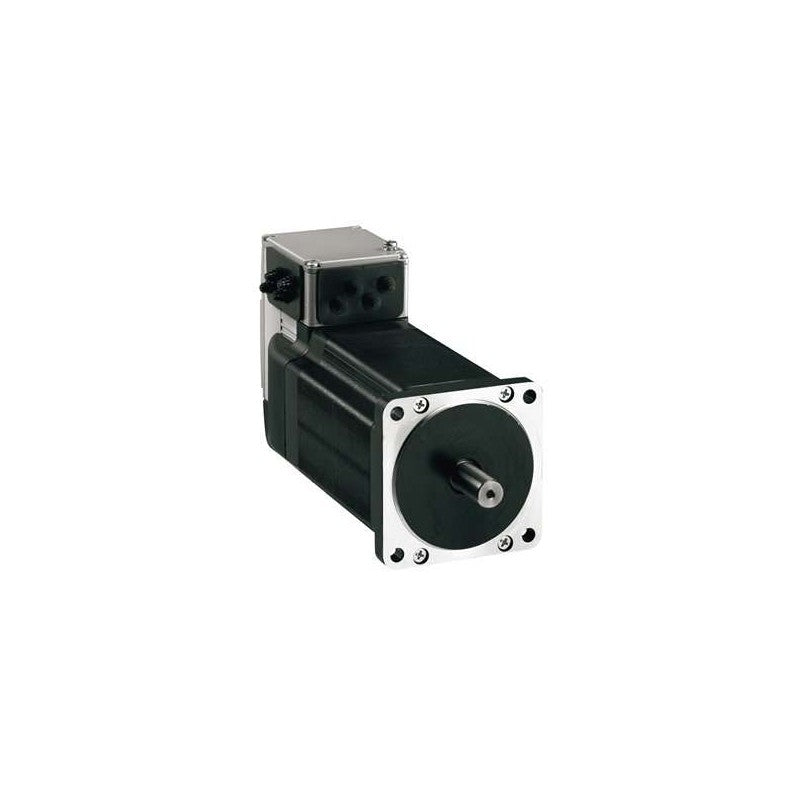

The Schneider Electric ILS1U852PB1F0 is an integrated stepper motor drive designed for precise motion control applications. This unit combines a stepper motor with its associated drive electronics, simplifying installation and reducing wiring complexity in automated systems. It operates within a specified voltage range and accepts pulse/direction control signals.

Technical details

• Series: ILS Integrated Drive
• Input Voltage Range: 24 VDC to 36 VDC
• Control Input: Pulse/Direction
• Control Voltage: 24 VDC
• Maximum Output Current: 5 A
• Motor Type: Stepper Motor
• Form Factor: Integrated Drive and Motor Unit
• Communication Protocol: Pulse/Direction (as specified by control input)

Applications & compatibility

This integrated drive is suitable for a wide range of automation tasks requiring accurate positioning and speed control. Common applications include pick-and-place machines, labeling equipment, small CNC machines, and automated assembly lines where space and wiring are critical considerations. It is designed to interface with PLCs or motion controllers that provide pulse and direction command signals.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILS1U852PB1F0 or contact our technical team for cross-reference assistance with compatible Schneider Electric motion control components.
