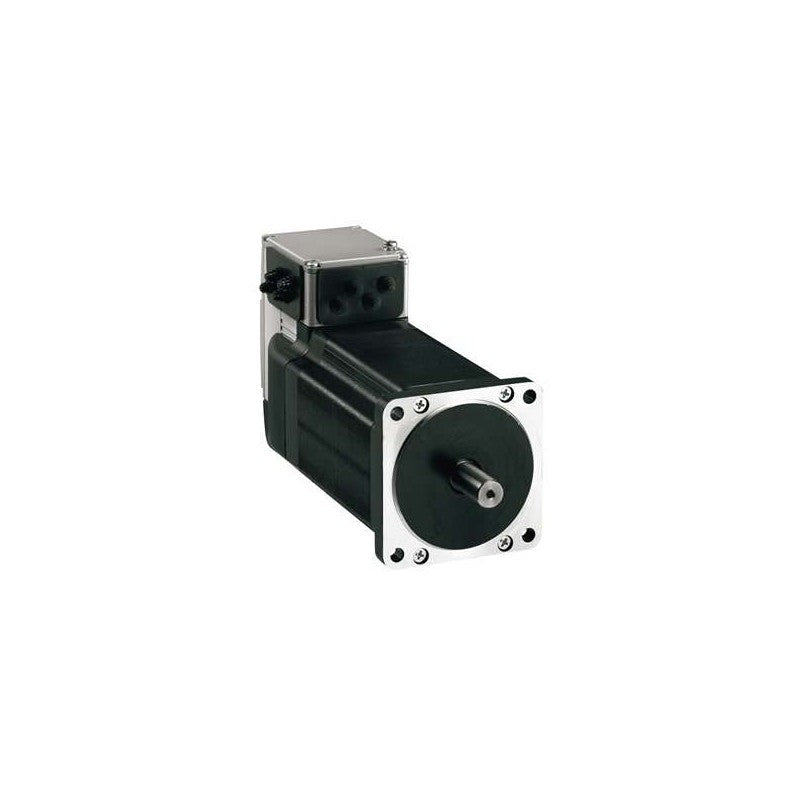

The Schneider Electric ILS1U853TB1F0 is an integrated stepper motor drive designed for precise motion control applications. This unit combines a stepper motor with its associated drive electronics, simplifying installation and reducing wiring complexity. It is engineered to operate within a specific voltage range and accepts pulse/direction control signals.

Technical details

• Series: ILS Integrated Drive System
• Input Voltage Range: 24 VDC to 36 VDC
• Control Input: Pulse/Direction
• Control Voltage: 24 VDC
• Maximum Output Current: 6 Amps
• Motor Type: Stepper Motor
• Form Factor: Integrated drive and motor unit
• Communication Protocol: Pulse/Direction (standard step and direction interface)

Applications & compatibility

This integrated drive is suitable for applications requiring precise positioning and speed control, commonly found in automated machinery. It is well-suited for use in packaging equipment, labeling machines, small CNC routers, and automated assembly lines where compact, integrated motion solutions are beneficial.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILS1U853TB1F0 or contact our technical team for cross-reference assistance with compatible Schneider Electric motion control components.
