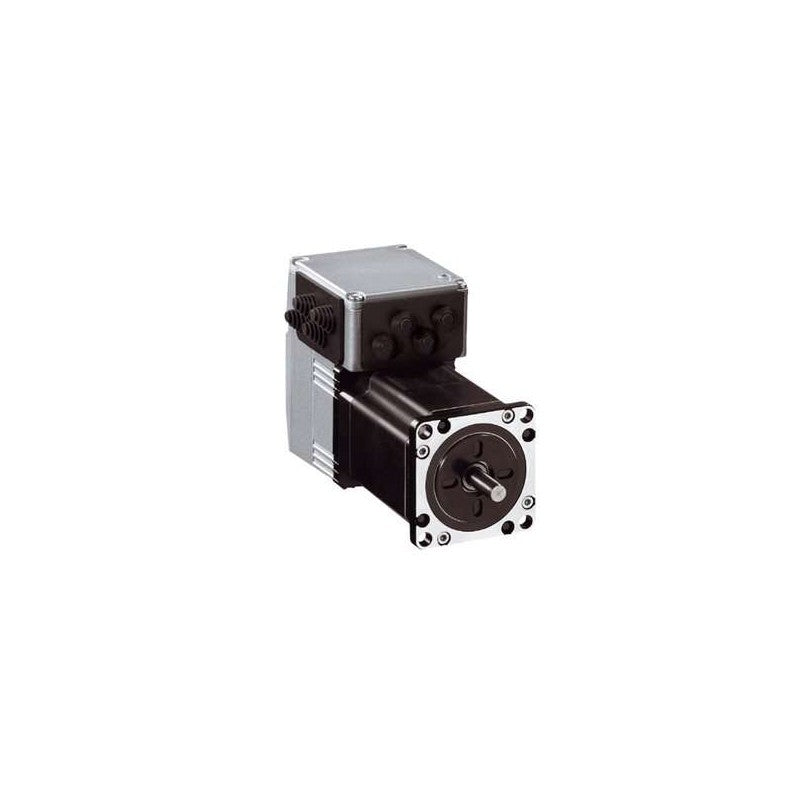

The Schneider Electric ILS1V571PB1A0 is an integrated stepper motor drive from the ILS series, designed for precise motion control applications. This unit operates with a voltage input range of 24 to 36V DC and features pulse/direction control, making it suitable for integration into various automation systems requiring incremental motion feedback. It is engineered to deliver reliable performance in demanding industrial environments.

Technical details

• Series: ILS Integrated Drive
• Motor Type: Stepper Motor
• Input Voltage Range: 24V DC to 36V DC
• Control Interface: Pulse/Direction (PUL/DIR)
• Communication Protocol: Pulse/Direction (RS422 interface not included)
• Maximum Current Rating: 3.5A per phase
• Integrated Design: Combines drive and motor control in a single unit
• Power Supply: DC input required

Applications & compatibility

This integrated drive is commonly employed in applications requiring precise positioning and speed control, such as automated assembly machines, pick-and-place systems, and small-scale CNC equipment. Its pulse/direction interface ensures compatibility with a wide range of motion controllers and PLCs that support this standard input method.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric ILS1V571PB1A0 or contact our technical team for cross-reference assistance with compatible ILS series components.
