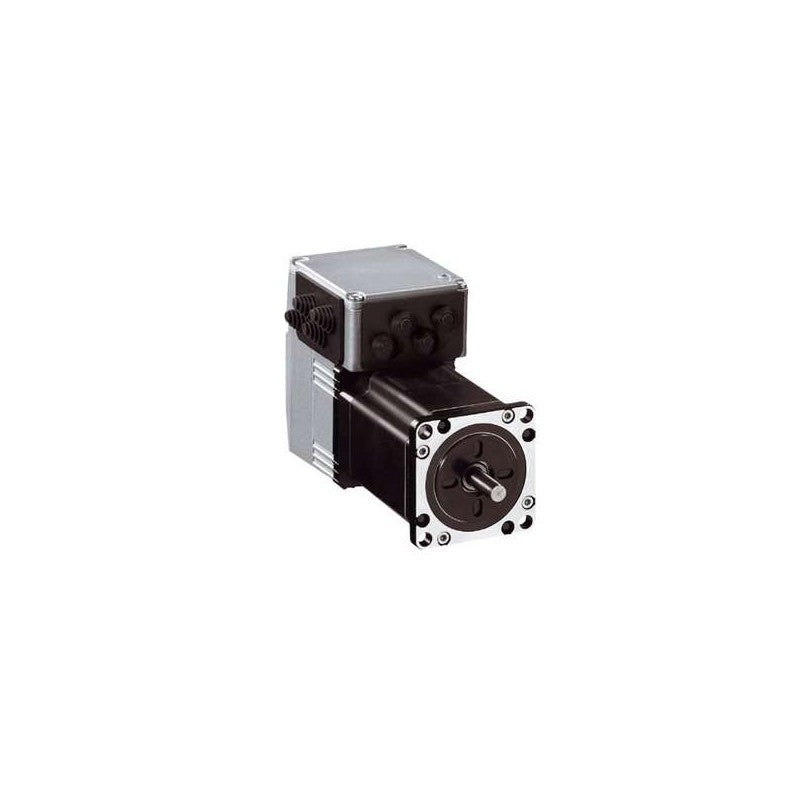

The Schneider Electric ILS1V572PB1A0 is an integrated stepper motor drive designed for precise motion control applications. This unit combines a stepper motor with its associated drive electronics, simplifying installation and reducing system complexity. It operates within a specified voltage range and accepts pulse/direction control signals, making it suitable for automation tasks requiring synchronized movement.

Technical details

• Series: ILS Integrated Drive
• Motor Type: Stepper Motor
• Input Voltage Range: 24 VDC to 36 VDC
• Control Interface: Pulse/Direction (without RS422)
• Maximum Output Current: 3.5 A
• Integrated Design: Combines drive and motor in a single unit
• Control Signal Type: Pulse and Direction inputs for motion command

Applications & compatibility

This integrated drive is commonly employed in automated machinery and equipment where precise positioning and controlled movement are critical. Applications include pick-and-place systems, labeling machines, small robotic arms, and automated assembly equipment. Its pulse/direction interface ensures compatibility with a wide range of motion controllers and PLCs.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILS1V572PB1A0 or contact our technical team for cross-reference assistance with compatible Schneider Electric motion control components.
