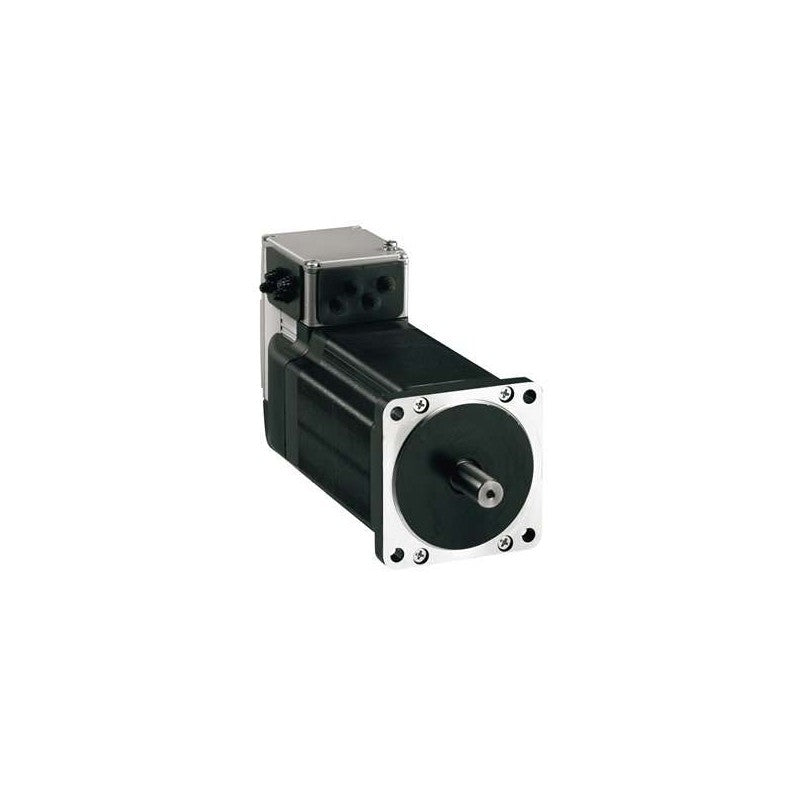

The Schneider Electric ILS1V853PB1A0 is an integrated stepper motor drive designed for precise motion control applications. This unit combines a stepper motor with its associated drive electronics, simplifying installation and reducing wiring complexity. It operates within a specified voltage range and utilizes pulse/direction control for command input.

Technical details

• Series: ILS Integrated Drive
• Motor Type: Stepper Motor
• Input Voltage Range: 24V to 36V DC
• Control Interface: Pulse/Direction (P/D)
• Communication Protocol: Pulse/Direction (without RS422 support)
• Maximum Output Current: 5A
• Integrated Design: Combines drive and motor in a single unit
• Power Supply: Requires a 24-36V DC power source

Applications & compatibility

This integrated stepper drive is suitable for a wide range of automation tasks requiring precise positioning and controlled motion. Common applications include automated assembly machines, pick-and-place systems, laboratory automation equipment, and small-scale CNC machinery. Its pulse/direction interface ensures compatibility with many standard motion controllers and PLCs.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILS1V853PB1A0 or contact our technical team for cross-reference assistance with compatible Schneider Electric motion control components.
