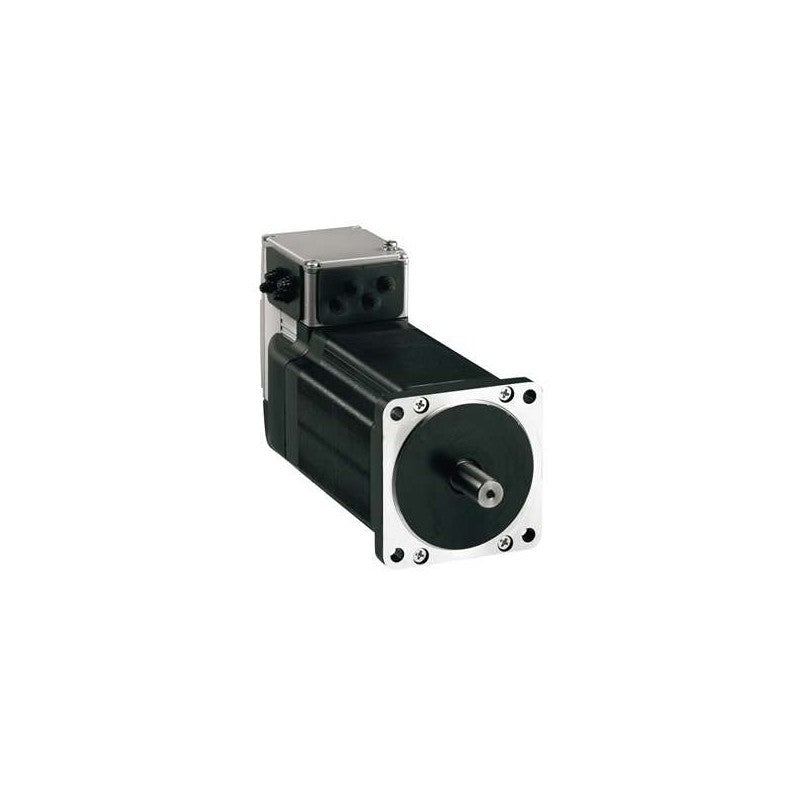

The Schneider Electric ILS1V853TB1A0 is an integrated drive and stepper motor solution designed for precise motion control applications. This unit combines a stepper motor with its associated drive electronics, simplifying installation and setup in automated systems. It operates on a pulse/direction interface, making it compatible with a wide range of motion controllers and PLCs.

Technical details

• Series: ILS Integrated Drive System
• Motor Type: Stepper Motor
• Input Voltage Range: 24V to 36V DC
• Maximum Output Current: 6A
• Control Interface: Pulse/Direction (PUL/DIR)
• Communication Protocol: Pulse/Direction (RS422 communication is not included)
• Integrated Functionality: Combines drive and motor in a single unit
• Power Supply Type: DC

Applications & compatibility

This integrated drive and motor is well-suited for applications requiring precise positioning and controlled movement, such as pick-and-place machines, automated assembly lines, labeling equipment, and small CNC machines. Its pulse/direction interface ensures broad compatibility with existing automation architectures and motion control platforms.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILS1V853TB1A0 or contact our technical team for cross-reference assistance with compatible motion control components.
