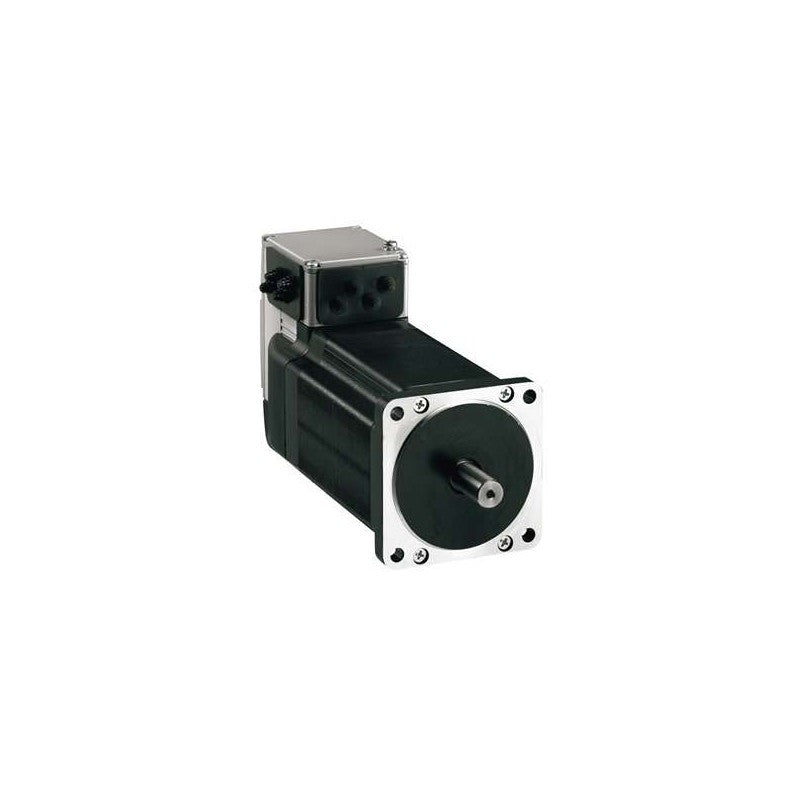

The Schneider Electric ILS1V853TB1F0 is an integrated stepper motor drive designed for precise motion control applications. This unit combines a stepper motor with its drive electronics, simplifying installation and wiring in automation systems. It operates on a DC power supply and utilizes pulse/direction control for command input.

Technical details

• Series: ILS Integrated Drive System
• Motor Type: Stepper Motor
• Drive Type: Integrated Drive and Motor
• Input Voltage Range: 24V to 36V DC
• Control Interface: Pulse/Direction (without RS422)
• Maximum Output Current: 6A
• Communication Protocol: Pulse/Direction (no RS422 support)
• Form Factor: Integrated unit combining motor and drive

Applications & compatibility

This integrated stepper drive is suitable for applications requiring precise positioning and speed control, commonly found in packaging machinery, material handling systems, and automated assembly lines. Its pulse/direction interface ensures compatibility with a wide range of PLCs and motion controllers that support open-loop stepper control.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILS1V853TB1F0 or contact our technical team for cross-reference assistance with compatible Schneider Electric motion control components.
