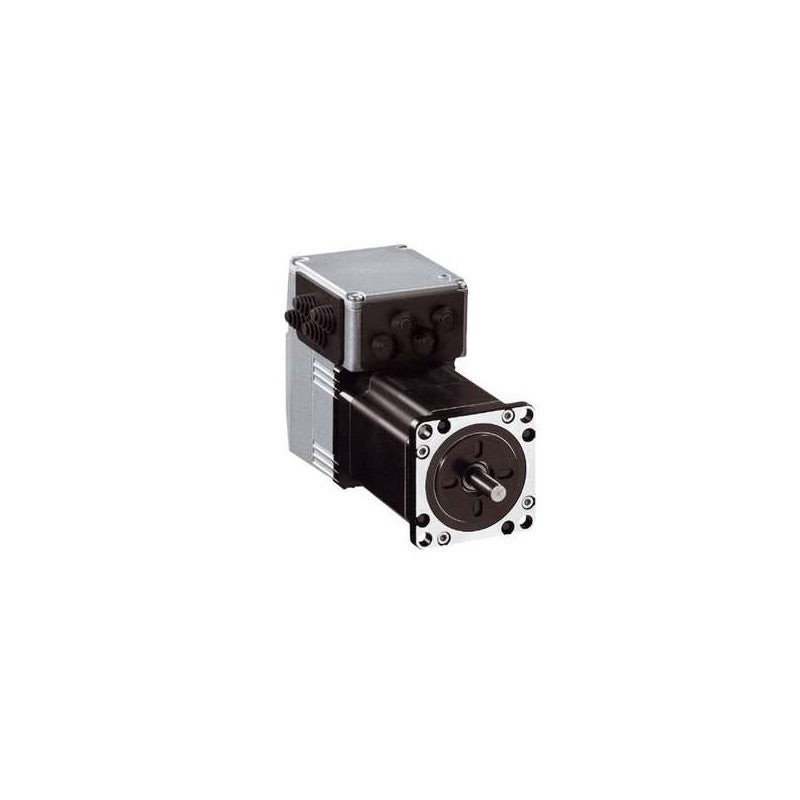

The Schneider Electric ILS1W571PB1A0 is an integrated drive designed for stepper motor control. This unit operates within a 24-36VDC power range and supports pulse/direction control signals via a 5V RS422 interface. It is engineered to deliver up to 3.5A of current to the connected stepper motor, making it suitable for precise motion control applications.

Technical details

• Series: ILS Integrated Drive
• Input Voltage: 24-36 VDC
• Motor Control Interface: Pulse/Direction
• Signal Voltage: 5V
• Signal Protocol: RS422
• Maximum Output Current: 3.5A
• Integrated Component: Stepper Motor
• Drive Type: Integrated Drive System

Applications & compatibility

This integrated drive is commonly employed in automation systems requiring precise and repeatable positioning. Applications include automated assembly machines, pick-and-place robots, labeling equipment, and small-scale CNC machinery where direct motor drive and control are essential for operational efficiency.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILS1W571PB1A0 or contact our technical team for cross-reference assistance with compatible Schneider Electric motion control components.
