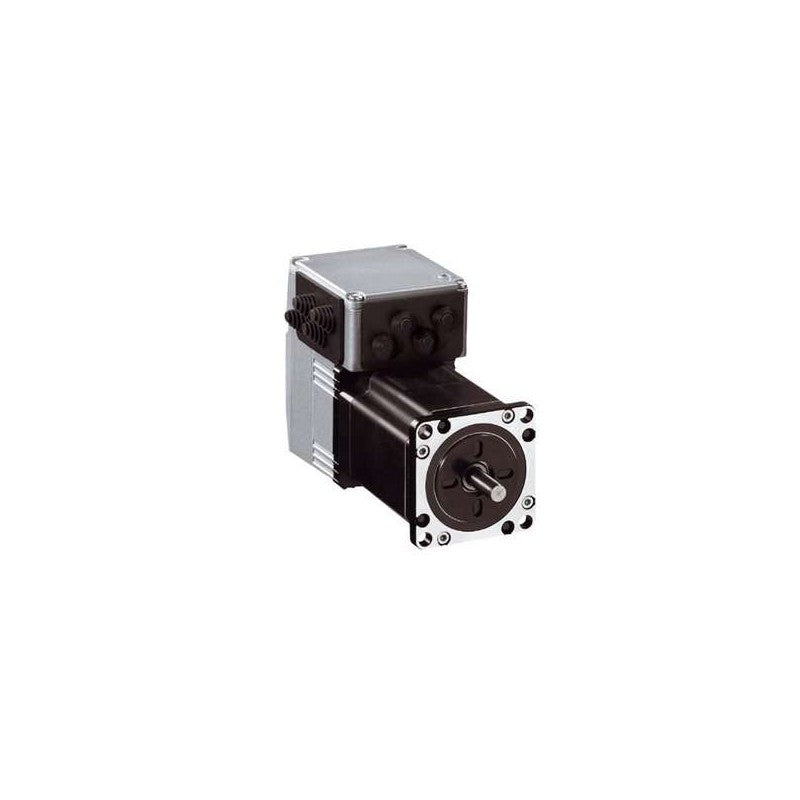

The Schneider Electric ILS1W573PB1A0 is an integrated drive designed for stepper motor control. This unit operates within a voltage range of 24 to 36V DC and supports pulse/direction control signals via a 5V RS422 interface. It is engineered to deliver up to 3.5A of current to the connected stepper motor, making it suitable for applications requiring precise motion control in automated systems.

Technical details

• Series: ILS Integrated Drive
• Motor Type: Stepper Motor
• Input Voltage Range: 24V DC to 36V DC
• Control Interface: Pulse/Direction
• Signal Voltage: 5V
• Communication Protocol: RS422
• Maximum Output Current: 3.5A
• Integrated Drive Functionality: Combines drive and control for stepper motors.

Applications & compatibility

This integrated drive is commonly employed in automated machinery and systems where precise positioning and speed control of stepper motors are critical. Applications include robotics, pick-and-place machines, automated assembly lines, and other motion-critical industrial equipment. Its RS422 interface ensures robust communication in electrically noisy environments.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILS1W573PB1A0 or contact our technical team for cross-reference assistance with compatible Schneider Electric motion control components.
