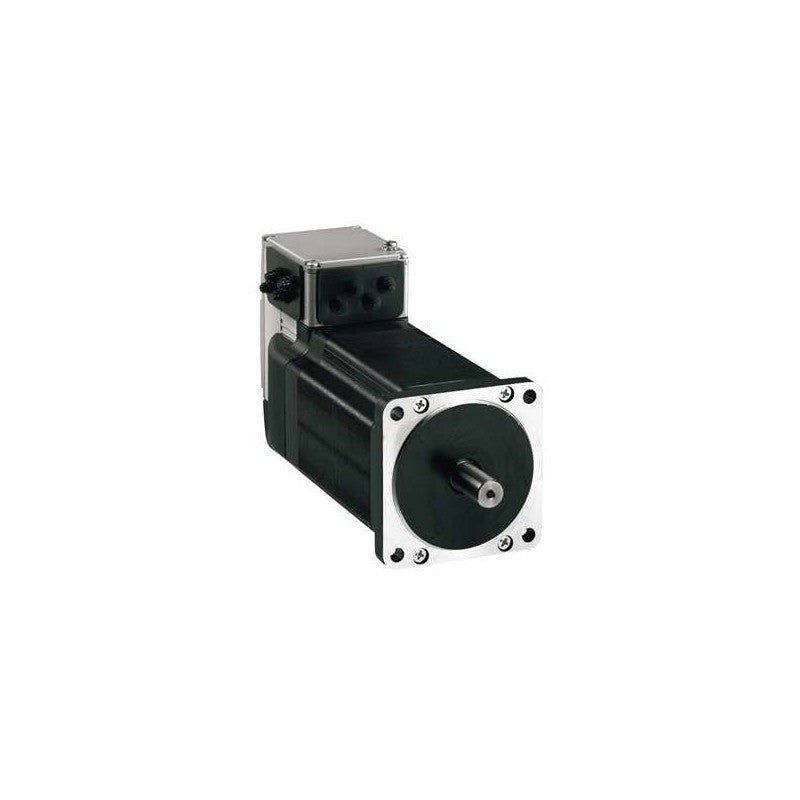

The Schneider Electric ILS1W851PB1F0 is an integrated drive designed for stepper motor control. This unit operates within a 24-36VDC power range and utilizes a pulse/direction interface with 5V RS422 signaling. It is engineered to deliver up to 5A of current to the connected stepper motor, making it suitable for precise motion control applications.

Technical details

• Series: ILS Integrated Drive
• Input Voltage Range: 24-36 VDC
• Output Current Rating: 5A
• Motor Type: Stepper Motor
• Control Interface: Pulse/Direction
• Signal Level: 5V RS422
• Integrated Components: Drive and Stepper Motor

Applications & compatibility

This integrated drive is commonly employed in automation systems requiring precise positioning and speed control of stepper motors. Applications include automated assembly machines, pick-and-place robots, labeling equipment, and other machinery where accurate, repeatable motion is critical. Its pulse/direction interface ensures compatibility with a wide range of motion controllers and PLCs.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILS1W851PB1F0 or contact our technical team for cross-reference assistance with compatible Schneider Electric motion control components.
