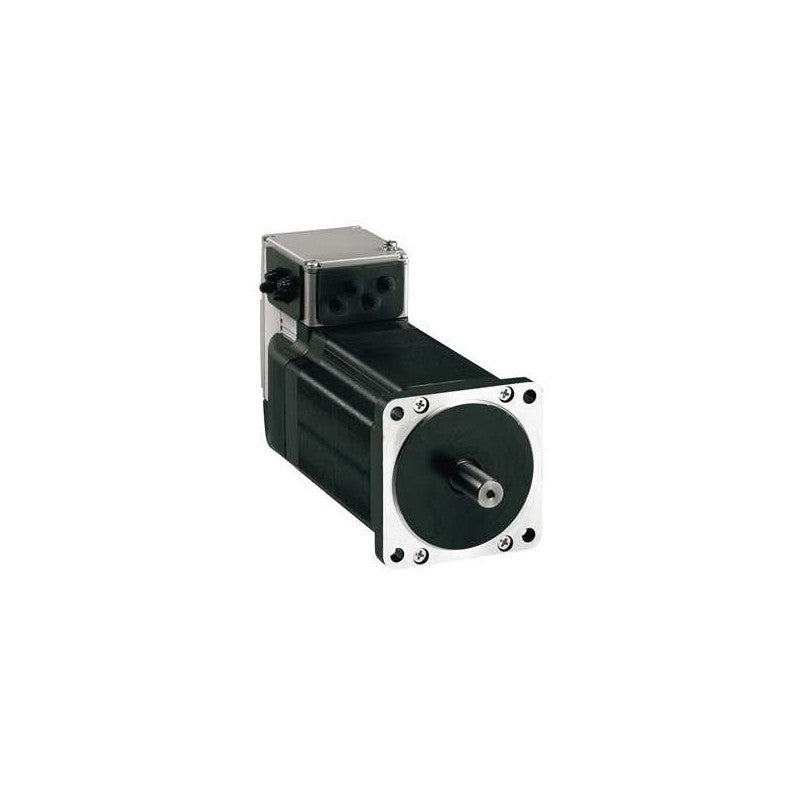

The Schneider Electric integrated drive ILS series combines a stepper motor with a drive controller, designed for precise motion control applications. This unit operates within a 24V to 36V DC voltage range and supports pulse/direction input signals via a 5V RS422 interface. Its integrated design simplifies installation and wiring for automation systems.

Technical details

• Series: ILS Integrated Drive
• Motor Type: Stepper Motor
• Input Voltage Range: 24V - 36V DC
• Control Interface: Pulse/Direction
• Signal Voltage: 5V
• Communication Protocol: RS422
• Maximum Current Rating: 5A
• Drive and Motor Integration: All-in-one unit

Applications & compatibility

This integrated drive is suitable for a variety of automation tasks requiring precise positioning and speed control. Common applications include pick-and-place machines, labeling equipment, small CNC machines, and automated assembly lines where space and wiring complexity are critical factors.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ILS1W852PB1A0 or contact our technical team for cross-reference assistance with compatible Schneider Electric motion control components.
