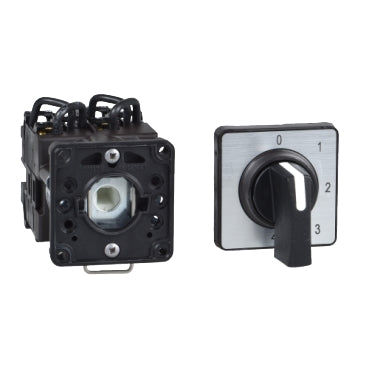

The Schneider Electric K1D004QCH is a cam stepping switch designed for precise control in automation systems. This 1-pole switch operates with a 45° step angle, making it suitable for applications requiring sequential switching operations. It is rated for 12 A and is designed for use with 22 mm mounting holes, a common standard in control panel construction.

Technical details

• Series: K1D Series
• Pole Configuration: 1 Pole
• Step Angle: 45°
• Current Rating: 12 A
• Mounting Diameter: 22 mm
• Switch Type: Cam Stepping Switch
• Contact Type: Single Pole, Single Throw (SPST) - inferred from 1 pole configuration
• Actuator Type: Cam (rotary)

Applications & compatibility

This cam stepping switch is commonly employed in control panels for machinery requiring sequential operation, such as packaging equipment, material handling systems, and assembly lines. Its robust design and specific step angle make it ideal for applications where precise, repeatable switching sequences are critical for machine functionality and safety interlocks.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the K1D004QCH or contact our technical team for cross-reference assistance with compatible Schneider Electric K1D series components.
