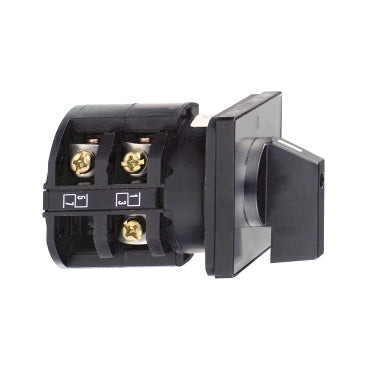

The Schneider Electric K30H001YP is a Harmony K series cam star-delta switch designed for motor control applications. This front-mounting switch facilitates the starting of three-phase induction motors by connecting them in a star configuration for reduced voltage start, followed by a transition to a delta configuration for full voltage operation. It is commonly integrated into control panels for machinery requiring soft motor starts, such as conveyor systems and pumps.

Technical details

• Series: Harmony K
• Switch Type: Cam star-delta switch
• Mounting Type: Front mounting
• Construction Material: Plastic
• Number of Poles: 3
• Switching Angle: 60°
• Rated Current: 32A
• Front Plate Dimensions: 64x64mm
• Number of Positions: 3
• Position Markings: Standard markings for star-delta operation

Applications & compatibility

This K30H001YP switch is suitable for direct on-line starting of three-phase motors in applications where reduced starting current is required. It finds use in various industrial sectors including manufacturing, material handling, and water treatment, particularly in systems like packaging machinery, machine tools, and pump stations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the K30H001YP or contact our technical team for cross-reference assistance with compatible Harmony K components.
