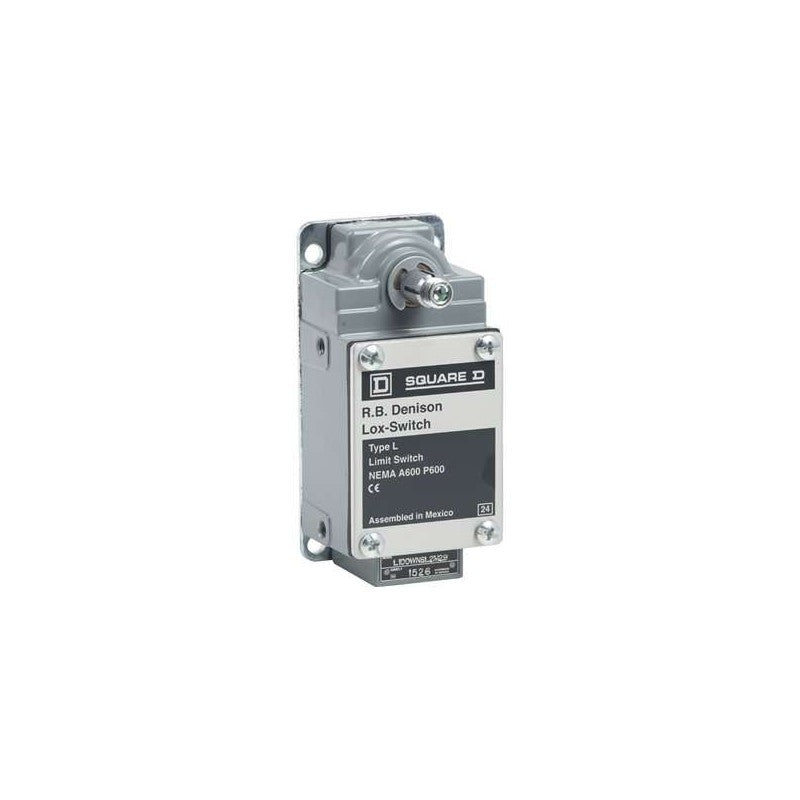

The Schneider Electric L100WNSL2M29 is a limit switch designed for robust industrial control applications. As part of the Schneider Electric Type L series, this switch is engineered for reliable operation in demanding environments. It is commonly utilized in machine tool applications and automated assembly lines where precise position sensing is critical for operational safety and control.

Technical details

• Series: Type L
• Voltage Rating: 600V AC
• Current Rating: 10A
• Actuator Type: Roller Lever (indicated by 'WNSL' in the part number, though specific roller dimensions should be verified against the datasheet)
• Contact Configuration: Double Pole Double Throw (DPDT) (indicated by '2M' in the part number)
• Enclosure Type: Standard industrial enclosure (specific NEMA or IP rating should be verified against the datasheet)
• Mounting: Standard mounting provisions for industrial limit switches (specific dimensions should be verified against the datasheet)
• Operating Temperature Range: Standard industrial range; consult datasheet for precise specifications.

Applications & compatibility

This limit switch is suitable for a wide range of industrial automation systems, including CNC machinery, material handling equipment, and packaging machines. It serves as a critical component for detecting the end of travel for moving machine parts, ensuring proper sequencing and preventing over-travel damage. Compatibility with existing control panels and safety circuits should be confirmed via the manufacturer's documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the L100WNSL2M29 or contact our technical team for cross-reference assistance with compatible Schneider Electric Type L components.
