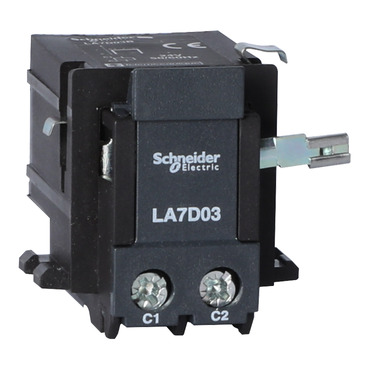

Part of the Schneider Electric TeSys Deca family, the LA7D03B is a thermal overload relay designed for motor protection in industrial automation systems. This relay facilitates remote electrical tripping, enhancing operational safety and control flexibility. It operates on a versatile 24V DC/AC control voltage, making it suitable for a wide range of control panel configurations.

Technical details

• Series: TeSys Deca
• Product Type: Thermal Overload Relay
• Control Voltage: 24V DC/AC
• Tripping Functionality: Remote Electrical Tripping
• Protection Class: Thermal overload protection for motors
• Mounting: Designed for integration with compatible TeSys contactors (verify mounting details with manufacturer datasheet)
• Environmental Rating: Suitable for industrial environments (verify specific IP rating with manufacturer datasheet)
• Reset Type: Manual or automatic reset (verify with manufacturer datasheet)

Applications & compatibility

The LA7D03B thermal overload relay is commonly employed in motor control circuits for applications such as conveyor systems, pumps, fans, and general machinery. It provides essential protection against overcurrent conditions, safeguarding motors and preventing downtime in manufacturing and processing environments. Compatibility is typically with specific Schneider Electric TeSys D or Deca series contactors; always consult the manufacturer's documentation for precise integration requirements.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LA7D03B or contact our technical team for cross-reference assistance with compatible TeSys components.
