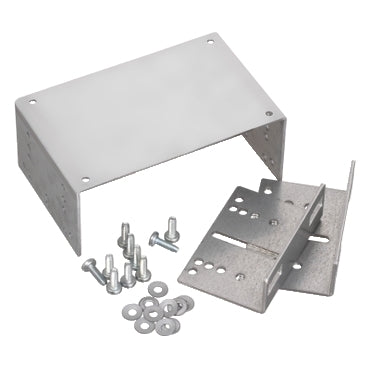

The Schneider Electric LA7F902 is a mounting plate designed for use with TeSys LR9F7 and LR9F8 thermal overload relays. This accessory facilitates the secure and proper installation of these protection devices within electrical control panels and machinery enclosures. Its construction ensures compatibility and reliable integration into Schneider Electric's TeSys motor control system.

Technical details

• Series: TeSys LA7F
• Compatible Devices: TeSys LR9F7, TeSys LR9F8
• Function: Mounting plate for thermal overload relays
• Material: Typically constructed from durable industrial-grade materials for longevity.
• Mounting Type: Designed for panel or DIN rail mounting in conjunction with the specified overload relays.
• Environmental Rating: Suitable for standard industrial control panel environments.
• Dimensions: Specific dimensions should be verified against the manufacturer's datasheet for precise panel layout planning.

Applications & compatibility

This mounting plate is essential for applications requiring the protection of electric motors against overloads and phase failures. It is commonly found in motor control centers for industrial machinery such as pumps, fans, conveyors, and machine tools. The LA7F902 ensures that the TeSys LR9F7/F8 overload relays are correctly positioned and secured for optimal performance and safety.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LA7F902 or contact our technical team for cross-reference assistance with compatible TeSys components.
