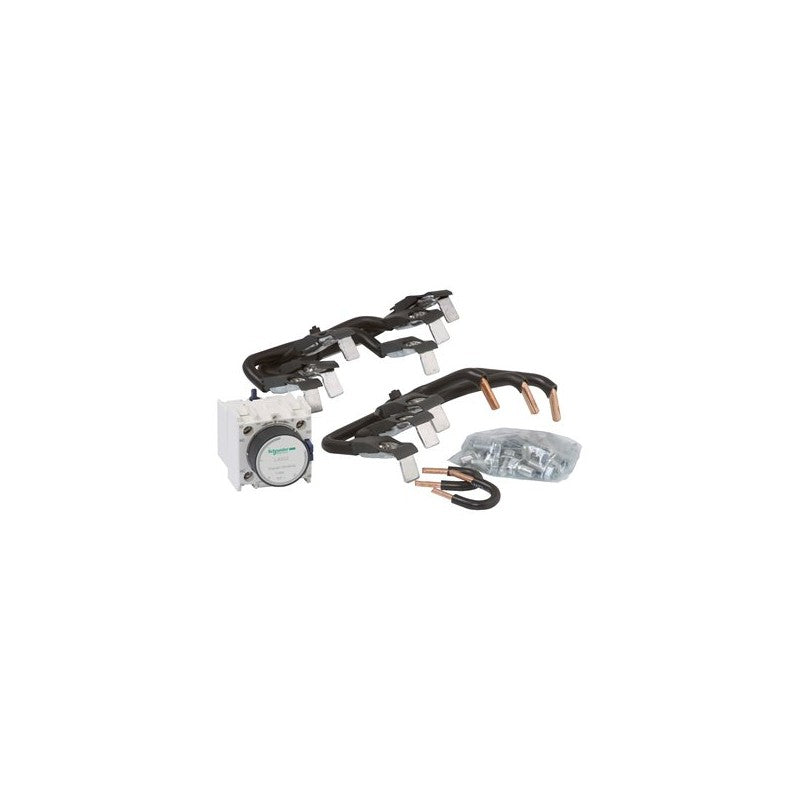

The LA9D8017 from Schneider Electric is a kit designed for assembling star-delta motor starters. This assembly kit is specifically engineered to work with three LC1D80 series contactors and includes a time delay block for controlled motor starting sequences. It is a crucial component for applications requiring reduced starting current and torque, common in many industrial motor control systems.

Technical details

• Series: LC1D80 compatible assembly kit
• Included Components: Kit for assembling star-delta starters
• Contactor Compatibility: Designed for three LC1D80 contactors
• Functional Module: Incorporates a time delay block
• Application: Facilitates star-delta starting method
• Voltage/Power Rating: Specific voltage and power ratings are dependent on the three LC1D80 contactors used in conjunction with this kit. Please consult the LC1D80 contactor datasheets for detailed specifications.
• Control Method: Enables reduced voltage starting for three-phase induction motors.

Applications & compatibility

This star-delta starter assembly kit is integral to motor control panels for applications such as large centrifugal pumps, fans, compressors, and conveyor systems where high starting currents need to be managed. It is compatible with three-phase induction motors requiring a controlled start to prevent mechanical stress and electrical grid disturbances.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LA9D8017 or contact our technical team for cross-reference assistance with compatible LC1D80 contactor configurations.
