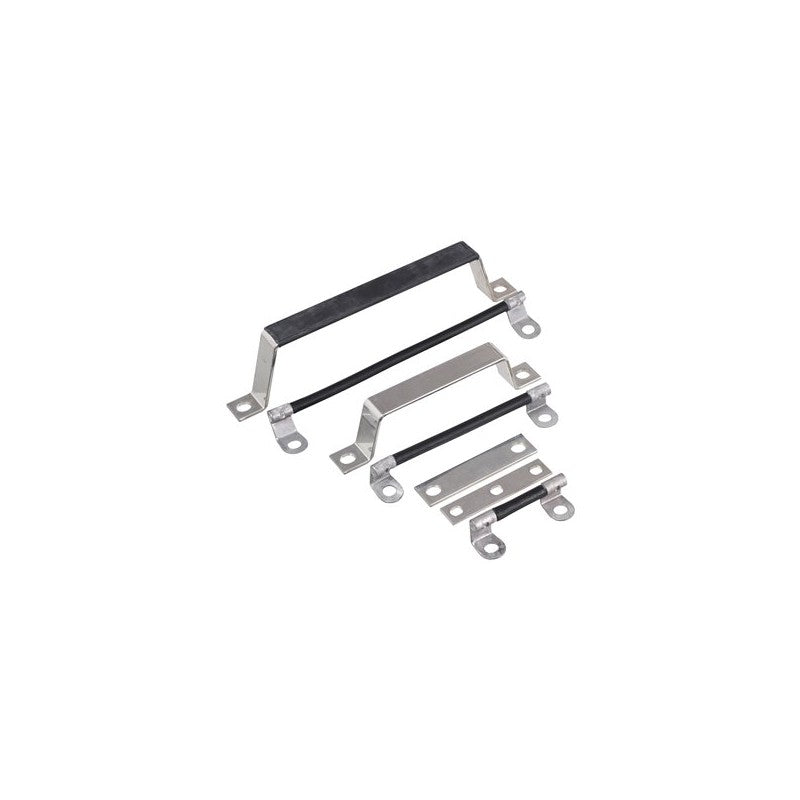

The Schneider Electric TeSys F LA9F22510 is a connection set designed for 3-pole star-delta motor starter configurations. This component facilitates the proper electrical connections required for starting three-phase induction motors using the star-delta method, a common technique for reducing starting current and torque in applications such as pumps, fans, and compressors.

Technical details

• Series: TeSys F
• Configuration: Star-delta connection set
• Number of Poles: 3-pole
• Functionality: Facilitates the switching between star and delta configurations for motor starting.
• Component Type: Connection set for motor starters.
• Compatibility: Designed for use with compatible TeSys F series contactors and overload relays for complete motor control solutions.
• Voltage Rating: Specific voltage rating should be verified against the manufacturer's datasheet for the intended application.
• Current Rating: Specific current rating should be verified against the manufacturer's datasheet for the intended application.

Applications & compatibility

This TeSys F connection set is integral to motor control systems requiring reduced voltage starting. It is commonly found in applications such as industrial fans, pumps, compressors, and conveyor systems where managing high inrush currents is critical for equipment longevity and power system stability. Ensure compatibility with your specific TeSys F contactor and overload relay setup.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LA9F22510 or contact our technical team for cross-reference assistance with compatible TeSys F components.
