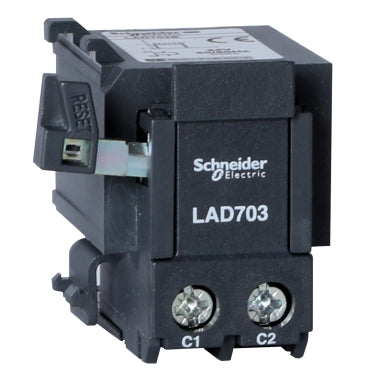

The Schneider Electric TeSys D LAD703F is a thermal overload relay designed for remote electrical stop functionality. This relay operates within a 110 V DC/AC voltage range, providing essential motor protection for a variety of industrial applications. It is a key component in ensuring the safe and reliable operation of electric motors by detecting overcurrent conditions.

Technical details

• Series: TeSys D
• Product Type: Thermal Overload Relay
• Control Voltage: 110 V DC/AC
• Functionality: Remote Electrical Stop
• Protection Type: Thermal Overload
• Mounting: Designed for integration with compatible TeSys D contactors.
• Trip Class: Specific trip class information should be verified against the manufacturer's datasheet.
• Adjustable Current Setting: The specific current adjustment range for this model should be confirmed via the manufacturer's documentation.

Applications & compatibility

This TeSys D thermal overload relay is commonly employed in motor control circuits across various industries, including manufacturing, material handling, and process automation. It is designed to work in conjunction with Schneider Electric TeSys D contactors to provide comprehensive motor protection for applications such as conveyor systems, pumps, fans, and machine tools.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LAD703F or contact our technical team for cross-reference assistance with compatible TeSys D components.
