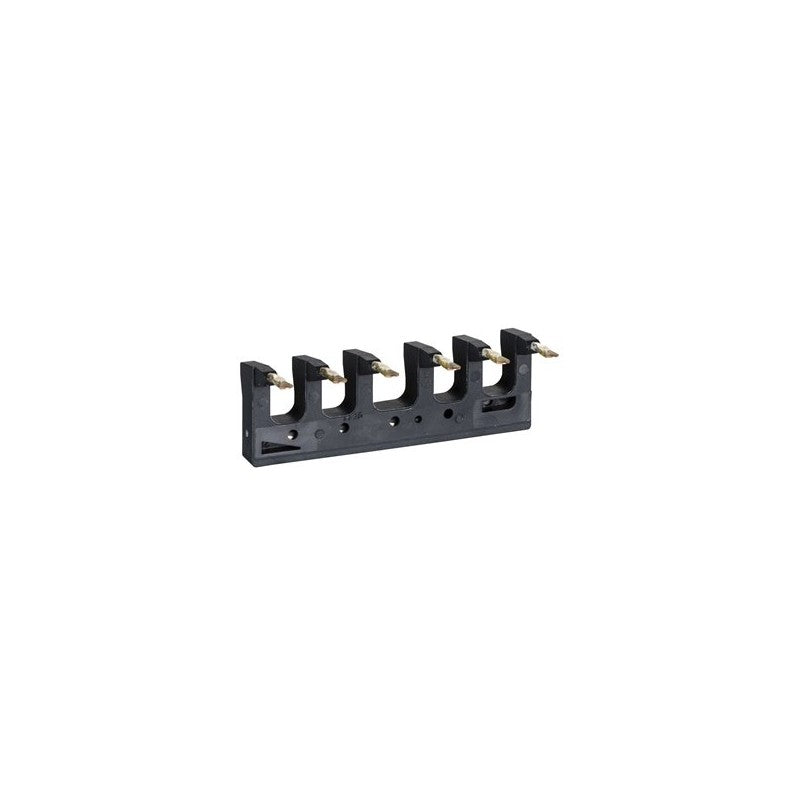

The Schneider Electric LAD9V12 is a set of power connections designed for 3-pole reversing contactor assemblies within the LC1D09-D38 series. This parallel busbar kit facilitates the electrical interconnection of contactors, ensuring proper power distribution for reversing motor control applications. It is engineered to integrate seamlessly with specific Schneider Electric contactor models.

Technical details

• Series: LC1D09-D38
• Product Type: Power connection set / Parallel busbar
• Configuration: For 3-pole reversing contactor assemblies
• Terminal Type: Spring terminals
• Functionality: Enables parallel busbar connection for reversing contactors
• Compatibility: Designed for use with Schneider Electric LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, and LC1D38 contactors in reversing configurations.
• Voltage Rating: Verify specific voltage requirements against manufacturer datasheet for application suitability.
• Current Rating: Verify specific current requirements against manufacturer datasheet for application suitability.

Applications & compatibility

This busbar kit is essential for applications requiring frequent motor direction changes, such as on packaging machinery, conveyor systems, and material handling equipment. It ensures reliable and efficient electrical connections for reversing motor starters, minimizing installation complexity and potential wiring errors.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LAD9V12 or contact our technical team for cross-reference assistance with compatible LC1D series components.
