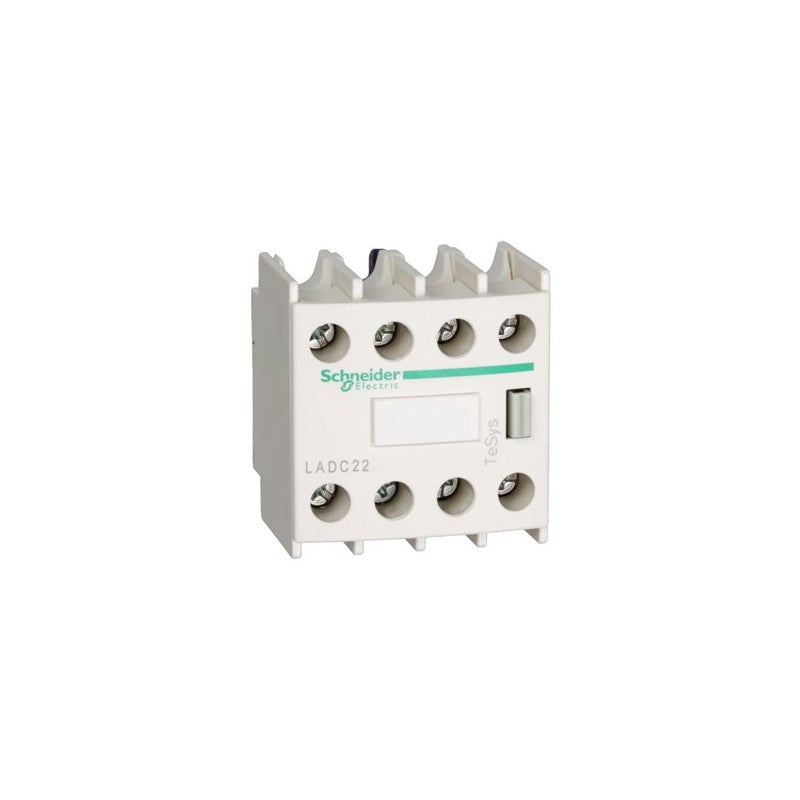

Part of the Schneider Electric TeSys D family, this auxiliary contact block is designed for front mounting onto compatible TeSys D contactors. It provides a configuration of 2 normally open (NO) and 2 normally closed (NC) contacts, including one NO and one NC contact set that operates with a make-before-break sequence. This specific configuration is crucial for applications requiring precise control and interlocking logic within motor control circuits.

Technical details

• Series: TeSys D
• Contact Configuration: 2 NO + 2 NC
• Special Contact Functionality: Includes 1 NO + 1 NC make-before-break
• Mounting Type: Front mounting
• Terminal Type: Screw terminals
• Contact Material: Not specified; refer to manufacturer datasheet for details.
• Rated Operational Voltage (Ue): Not specified; refer to manufacturer datasheet for details.
• Rated Operational Current (Ie): Not specified; refer to manufacturer datasheet for details.

Applications & compatibility

This auxiliary contact block is commonly employed in motor control applications requiring complex control logic and safety interlocks. It is essential for systems such as packaging machinery, material handling equipment, and HVAC control panels where precise sequencing and feedback are critical for operation and safety.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LADC22 or contact our technical team for cross-reference assistance with compatible TeSys D components.
