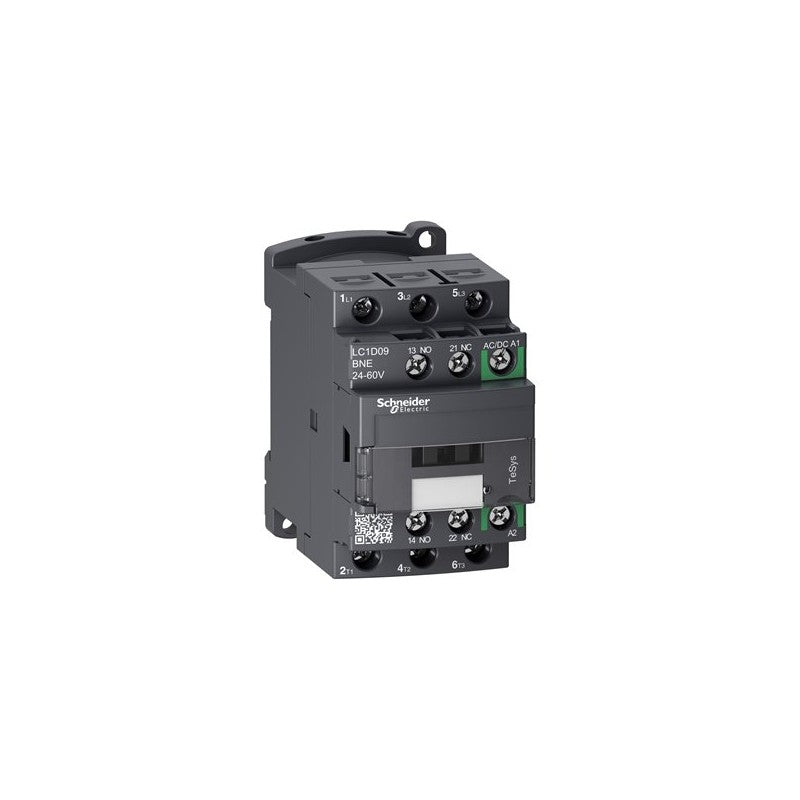

The Schneider Electric LC1D09BNE is a TeSys D series 3-pole contactor designed for motor control applications. This contactor is rated for AC-3 duty and supports power circuits up to 440V. Its integrated coil operates on a versatile 24-60V AC/DC voltage range, making it suitable for a wide array of control systems.

Technical details

• Series: TeSys D
• Number of Poles: 3
• AC-3 Rated Current: 9A
• Maximum AC-3 Voltage: 440V
• Coil Voltage: 24-60V AC/DC
• Control Circuit Type: AC/DC
• Terminal Type: Screw Terminals
• Mounting Type: DIN Rail or Screw Mount

Applications & compatibility

This TeSys D contactor is commonly employed in motor starter assemblies for controlling three-phase induction motors in various industrial settings. It is compatible with standard control circuits and can be integrated into panel builds for applications such as conveyor systems, pumps, fans, and general machinery control.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D09BNE or contact our technical team for cross-reference assistance with compatible TeSys D components.
