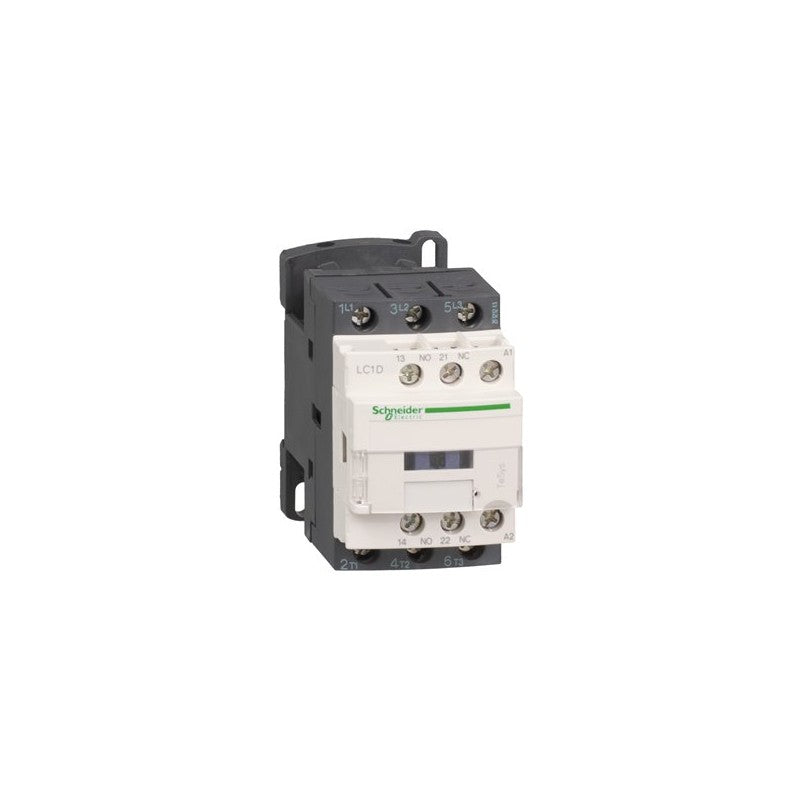

The Schneider Electric LC1D09E7 is a TeSys D series 3-pole contactor designed for motor control applications. This contactor is rated for AC-3 duty and is suitable for switching inductive loads up to 440V. Its 48V AC coil voltage makes it compatible with a wide range of control power systems commonly found in industrial automation environments.

Technical details

• Series: TeSys D
• Configuration: 3 Pole (3 Normally Open contacts)
• AC-3 Utilization Category: Suitable for switching squirrel cage motors
• Maximum AC-3 Voltage Rating: <= 440 V
• Continuous Current Rating (AC-3): 9 A
• Coil Voltage: 48 V AC
• Mounting Type: DIN rail or panel mount (verify mounting accessories with manufacturer datasheet)
• Terminal Type: Screw clamp terminals (verify with manufacturer datasheet)

Applications & compatibility

This TeSys D contactor is commonly employed in motor starter assemblies for controlling three-phase motors in applications such as conveyor systems, pumps, fans, and general machinery. It is designed to integrate seamlessly into control panels for various manufacturing processes, including food and beverage production, material handling, and HVAC systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D09E7 or contact our technical team for cross-reference assistance with compatible TeSys D components.
