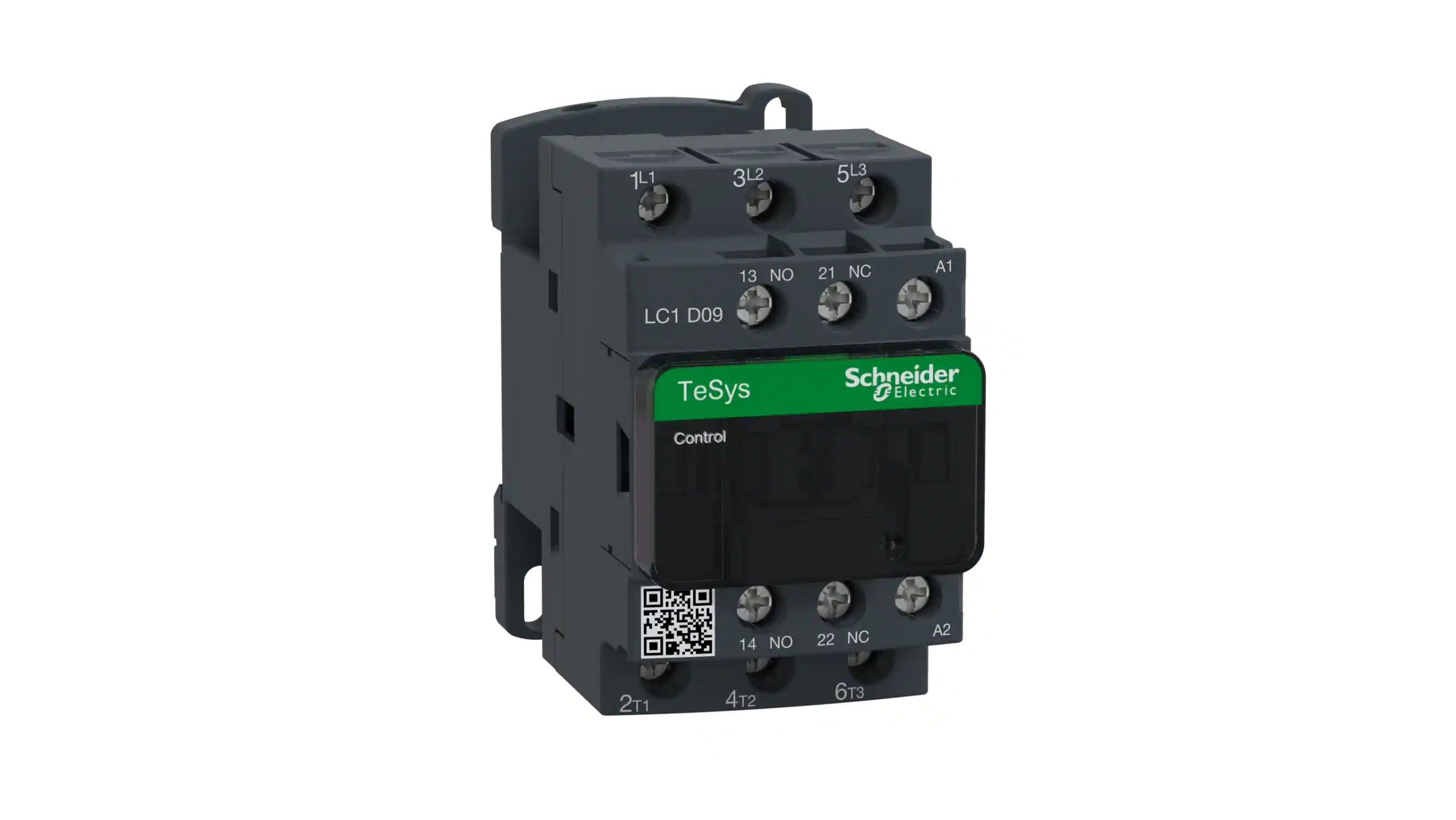

Schneider Electric's LC1D09M7C is a 3-pole contactor relay designed for motor control applications. This component is part of the TeSys D series, a robust line of contactors known for their reliability in demanding industrial environments. The LC1D09M7C is engineered to handle electrical loads up to 9 amps and is suitable for switching circuits with a 440V rating.

Technical details

• Series: TeSys D
• Number of Poles: 3
• Number of Normally Open (NO) Contacts: 3
• Coil Voltage: 220VAC
• Coil Frequency: 50/60Hz
• Rated Operational Current (AC-3): 9 Amps
• Rated Operational Voltage: 440V
• Terminal Type: Screw Terminals

Applications & compatibility

This TeSys D contactor relay is commonly employed in motor starter circuits for various industrial machinery. It is suitable for use in applications such as conveyor systems, pump controls, fan units, and general machine tool applications where reliable switching of three-phase motors is required. The 220VAC coil voltage makes it compatible with standard control power networks.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the LC1D09M7C or contact our technical team for cross-reference assistance with compatible TeSys D components.
